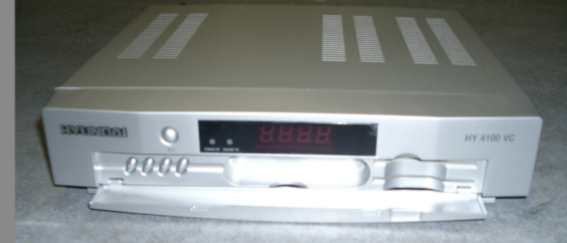

[Strong] Wie kent deze ? Zie ook foto.

[Gast]

HY 4100 VC



Smart card ( CAS model)2 slots—ISO7816, gsm 11.11 and EVM compatibility.



Tuner & channel (digital part)

Type 1x F-type, IEC 169-24 female

Freq.range 950 MHZ to 2150 MHZ

Input.imp. 75 ohm unbalanced

Sign.level -25 to –65 dBm

LNB pwr. 13.5/18.5Vdc

22kHz Tone

DiSEqC ctrl Versin 1.2 Comp.

Demodulation QPSK

Inp.Symb.rte 2-45Ms/s

Fec decoder Convolution Code Rate ½,2/3,3/4,5/6 and 7/8 with Constranit Length K=7



System & memory

Main processor SC2005 (LSI-logic)

Flash mem 1Mb(up to 8Mb)

Proc sdram 8Mb(up to 16 Mb)

A/v decoder SDRAM 2 Mb( up to 4Mb)

EEPROM 8 Kbyte

Ch.mem. digital channel : 3000

Multi sat. up to 64

[Gast]

Haal hem dan open en geef aan wie volgens de printplaat de leverancier is.

[Smurf]

uhm.. doet ie in strong dan?

Staat toch duidelijk hyundai op?

wat wil je weten dan?
