Tekst kleuren in een skin veranderen

[Fabian]

Wie weet of het mogelijk is om kleuren van een tekst in een bestaande skin te veranderen zijn? Ik heb namelijk nu een skin waar het erg moeilijk te zien is welke zenders nog te ontvangen zijn, als er een opname loopt. I.p.v. wit worden de geblokkeerde zenders licht grijs weergegeven. Ik heb namelijk wel eens een skin gehad, die de geblokkeerde zenders rood weergaven.

[Kabeltje87]

Kan volgens mij.



In enigma2:



In /usr/share/enigma2/skin naam

De file skin.xml openen met UTP-8 editor (Notepad++ is een goeie)

en de desbetreffende kleuren aanpassen in het volgende blok. (in Uw skin kan er e.e.a. wat anders uitzien.)



Citaat:

<screen flags="wfNoBorder" name="ChannelSelection" position="0,0" size="720,576" title="Channel Selection">

<ePixmap alphatest="on" name="chS_bg" pixmap="Merlin_Magic/border/sd.png" position="44,52" size="632,478" transparent="1" zPosition="1" />

<ePixmap alphatest="on" name="chS_bg" pixmap="Merlin_Magic/border/SrvSel.png" position="44,52" size="632,478" transparent="1" zPosition="1" />

<widget foregroundColorServiceNotAvail="#5a5a5a" name="list" position="85,57" scrollbarMode="showOnDemand" size="584,394" />

<widget font="Regular;18" halign="left" position="86,453" render="Label" size="55,22" source="ServiceEvent">

<convert type="EventTime">StartTime</convert>

<convert type="ClockToText" />

</widget>

<widget borderColor="un888888" borderWidth="1" pixmap="Merlin_Magic/window/chan_p_bar.png" position="145,460" render="Progress" size="100,8" source="ServiceEvent" zPosition="1">

<convert type="EventTime">Progress</convert>

</widget>

<widget font="Regular;18" position="258,453" render="Label" size="100,22" source="ServiceEvent">

<convert type="EventTime">Remaining</convert>

<convert type="RemainingToText">InMinutes</convert>

</widget>

<widget font="Regular;20" position="86,474" render="Label" size="584,50" source="ServiceEvent">

<convert type="EventName">ExtendedDescription</convert>

</widget>

<eLabel backgroundColor="darkgrey" position="85,450" size="584,2" zPosition="5" />

</screen>



In enigma1:



In /etc/enigma/skins de .esml file editen van de gewenste skin. Is lichtelijk anders dan in enigma2 maar een beetje experimenteren helpt.



Attentie: Een ongeldige skin (fouten) laat je box vastlopen. Maak dus eerst een backup van je .xml of .esml file. Die kun je dan alsnog met FTP terugzetten.



Willy

[Fabian]

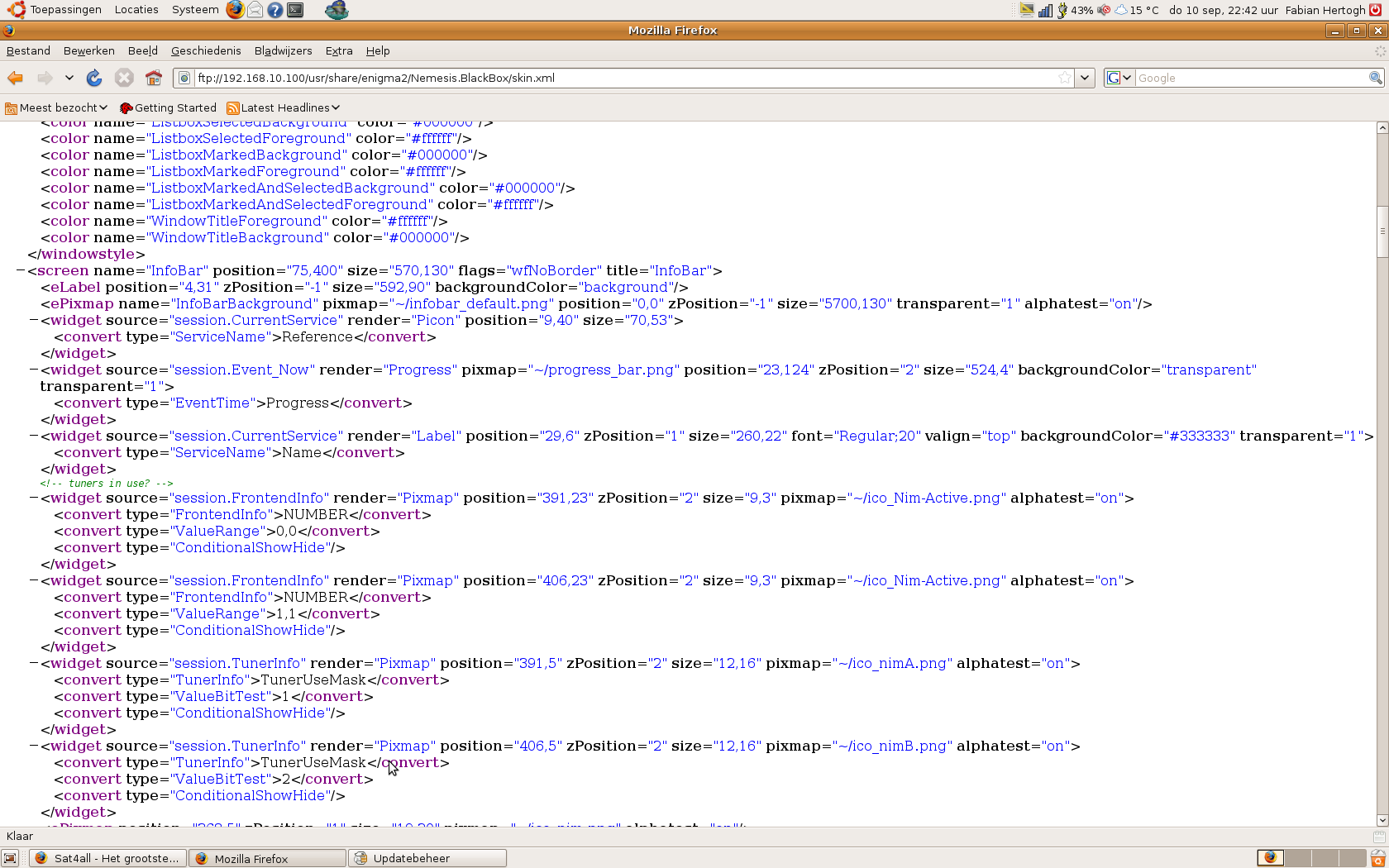

Als ik het bestand skin.xml open, zie ik ergens halverwege staan: <!-- tuners in use? -->. Moet ik daar zijn?

[Kabeltje87]

Dit ziet er anders uit dan in de skin die ik gebruik. (Merlin Magic)

Maar het gedeelte <tuners in use> moet volgens mij het goede zijn. Alleen zie ik direct niet waar je de kleur moet instellen.



Tenzij het een van de kleuren is die bovenaan in Uw shermafdruk staan. Het zou dan voldoende moeten zijn een van deze definities te wijzigen. (Even uitzoeken welke hex string overeenkomt met welke kleur).



Willy

[Fabian]

Ik krijg het niet voor elkaar.

Heeft iemand nog bruikbare tips?

[Fabian]

Ik krijg het wel voor elkaar om kleuren van teksten en achtergronden in de onderbalk van de skin te veranderen, maar ik kom niet bij de kleuren die gebruikt worden om de lijst van alle zenders weer te geven.

Ik gebruik de Black box skin in de laatste Pli Jade3 image.

Heeft iemand nog een idee waar ik moet zijn? De skin.xml ziet er als volgt uit:



Citaat:

<skin>

<!-- Nemesis BlackBox Skin for CVS -->

<colors>

<color name="white" value="#ffffff" />

<color name="grey" value="#cccccc" />

<color name="darkgrey" value="#999999" />

<color name="black" value="#000000" />

<color name="dark" value="#33294a6b" />

<color name="red" value="#f23d21" />

<color name="green" value="#389416" />

<color name="blue" value="#0064c7" />

<color name="yellow" value="#bab329" />

<color name="transparent" value="#ffffffff" />

<color name="transpBlack" value="#80000000" />

<color name="background" value="#32000000" />

<color name="foreground" value="#dddddd" />

<color name="KeyForeground" value="#ffffff" />

</colors>



<fonts>

<font filename="ds_digital.ttf" name="LCD" scale="100" />

<font filename="nmsbd.ttf" name="Regular" scale="85" />

<font filename="ae_AlMateen.ttf" name="Replacement" scale="90" replacement="1" />

</fonts>



<windowstyle type="skinned" id="0">

<title offset="20,6" font="Regular;20" />

<color name="Background" color="#32000000" />

<color name="LabelForeground" color="#dddddd" />

<color name="ListboxBackground" color="#32000000" />

<color name="ListboxForeground" color="#dddddd" />

<color name="ListboxSelectedBackground" color="#10666666" />

<color name="ListboxSelectedForeground" color="#ffffff" />

<color name="ListboxMarkedBackground" color="#ff0000" />

<color name="ListboxMarkedForeground" color="#ffffff" />

<color name="ListboxMarkedAndSelectedBackground" color="#800000" />

<color name="ListboxMarkedAndSelectedForeground" color="#ffffff" />

<color name="WindowTitleForeground" color="#ffffff" />

<color name="WindowTitleBackground" color="#3f3f3f" />

<borderset name="bsWindow">

<pixmap pos="bpTopLeft" filename="~/bs_tl.png" />

<pixmap pos="bpTop" filename="~/bs_t.png" />

<pixmap pos="bpTopRight" filename="~/bs_tr.png" />

<pixmap pos="bpLeft" filename="~/bs_l.png" />

<pixmap pos="bpRight" filename="~/bs_r.png" />

<pixmap pos="bpBottomLeft" filename="~/bs_bl.png" />

<pixmap pos="bpBottom" filename="~/bs_b.png" />

<pixmap pos="bpBottomRight" filename="~/bs_br.png" />

</borderset>

</windowstyle>



<windowstyle type="skinned" id="1">

<color name="Background" color="#000000" />

<color name="LabelForeground" color="#ffffff" />

<color name="ListboxBackground" color="#000000" />

<color name="ListboxForeground" color="#ffffff" />

<color name="ListboxSelectedBackground" color="#000000" />

<color name="ListboxSelectedForeground" color="#ffffff" />

<color name="ListboxMarkedBackground" color="#000000" />

<color name="ListboxMarkedForeground" color="#ffffff" />

<color name="ListboxMarkedAndSelectedBackground" color="#000000" />

<color name="ListboxMarkedAndSelectedForeground" color="#ffffff" />

<color name="WindowTitleForeground" color="#ffffff" />

<color name="WindowTitleBackground" color="#000000" />

</windowstyle>



<screen name="InfoBar" position="75,400" size="570,130" flags="wfNoBorder" title="InfoBar">

<eLabel position="4,31" zPosition="-1" size="592,90" backgroundColor="background" />

<ePixmap name="InfoBarBackground" pixmap="~/infobar_default.png" position="0,0" zPosition="-1" size="5700,130" transparent="1" alphatest="on" />

<widget source="session.CurrentService" render="Picon" position="9,40" size="70,53">

<convert type="ServiceName">Reference</convert>

</widget>

<widget source="session.Event_Now" render="Progress" pixmap="~/progress_bar.png" position="23,124" zPosition="2" size="524,4" backgroundColor="transparent" transparent="1" >

<convert type="EventTime">Progress</convert>

</widget>

<widget source="session.CurrentService" render="Label" position="29,6" zPosition="1" size="260,22" font="Regular;20" valign="top" backgroundColor="#333333" transparent="1" >

<convert type="ServiceName">Name</convert>

</widget>

<!-- tuners in use? -->

<widget source="session.FrontendInfo" render="Pixmap" position="391,23" zPosition="2" size="9,3" pixmap="~/ico_Nim-Active.png" alphatest="on" >

<convert type="FrontendInfo">NUMBER</convert>

<convert type="ValueRange">0,0</convert>

<convert type="ConditionalShowHide" />

</widget>

<widget source="session.FrontendInfo" render="Pixmap" position="406,23" zPosition="2" size="9,3" pixmap="~/ico_Nim-Active.png" alphatest="on" >

<convert type="FrontendInfo">NUMBER</convert>

<convert type="ValueRange">1,1</convert>

<convert type="ConditionalShowHide" />

</widget>

<widget source="session.TunerInfo" render="Pixmap" position="391,5" zPosition="2" size="12,16" pixmap="~/ico_nimA.png" alphatest="on" >

<convert type="TunerInfo">TunerUseMask</convert>

<convert type="ValueBitTest">1</convert>

<convert type="ConditionalShowHide" />

</widget>

<widget source="session.TunerInfo" render="Pixmap" position="406,5" zPosition="2" size="12,16" pixmap="~/ico_nimB.png" alphatest="on" >

<convert type="TunerInfo">TunerUseMask</convert>

<convert type="ValueBitTest">2</convert>

<convert type="ConditionalShowHide" />

</widget>

<ePixmap position="368,5" zPosition="1" size="19,20" pixmap="~/ico_nim.png" alphatest="on" />

<ePixmap position="391,5" zPosition="1" size="12,16" pixmap="~/ico_nimA_off.png" alphatest="on" />

<ePixmap position="406,5" zPosition="1" size="12,16" pixmap="~/ico_nimB_off.png" alphatest="on" />

<widget source="global.CurrentTime" render="Label" position="475,6" size="70,22" font="Regular;20" valign="top" halign="right" backgroundColor="#333333" transparent="1" >

<convert type="ClockToText">Default</convert>

</widget>

<widget source="session.CurrentService" render="Label" position="9,100" zPosition="1" size="100,20" font="Regular;18" valign="top" backgroundColor="#333333" transparent="1" >

<convert type="ServiceOrbitalPosition"></convert>

</widget>

<widget source="session.CurrentService" render="Label" position="135,105" zPosition="1" size="300,20" font="Regular;17" valign="top" halign="center" backgroundColor="#333333" transparent="1" >

<convert type="CryptoInfo">VerboseInfo</convert>

</widget>

<eLabel text="SNR" position="88,35" size="32,19" font="Regular;16" valign="top" backgroundColor="background" foregroundColor="#e5b243" transparent="1" />

<widget source="session.FrontendStatus" render="Label" position="119,35" size="60,19" font="Regular;16" valign="top" backgroundColor="background" transparent="1" >

<convert type="FrontendInfo">SNRdB</convert>

</widget>

<eLabel text="(" position="183,35" size="3,19" font="Regular;16" halign="right" valign="top" backgroundColor="background" transparent="1" />

<widget source="session.FrontendStatus" render="Label" position="185,35" size="35,19" font="Regular;16" halign="center" valign="top" backgroundColor="background" transparent="1" >

<convert type="FrontendInfo">SNR</convert>

</widget>

<eLabel text=")" position="218,35" size="3,19" font="Regular;16" halign="left" valign="top" backgroundColor="background" transparent="1" />

<eLabel text="AGC" position="230,35" size="34,19" font="Regular;16" valign="top" backgroundColor="background" foregroundColor="#e5b243" transparent="1" />

<widget source="session.FrontendStatus" render="Label" position="266,35" size="41,19" font="Regular;16" valign="top" backgroundColor="background" transparent="1" >

<convert type="FrontendInfo">AGC</convert>

</widget>

<eLabel text="BER" position="307,35" size="35,19" font="Regular;16" valign="top" backgroundColor="background" foregroundColor="#e5b243" transparent="1" />

<widget source="session.FrontendStatus" render="Label" position="342,35" size="40,19" font="Regular;16" valign="top" backgroundColor="background" transparent="1" >

<convert type="FrontendInfo">BER</convert>

</widget>

<eLabel position="67,433" size="606,56" backgroundColor="background" />

<ePixmap pixmap="~/now_frame.png" position="82,55" zPosition="1" size="480,23" alphatest="on" />

<widget source="session.Event_Now" render="Label" position="88,57" size="50,21" font="Regular;19" valign="top" backgroundColor="background" >

<convert type="EventTime">StartTime</convert>

<convert type="ClockToText">Default</convert>

</widget>

<widget source="session.Event_Now" render="Label" position="140,57" size="320,21" font="Regular;19" valign="top" backgroundColor="background" >

<convert type="EventName">Name</convert>

</widget>

<widget source="session.Event_Now" render="Label" position="470,57" size="85,21" font="Regular;19" valign="top" halign="right" backgroundColor="background" >

<convert type="EventTime">Remaining</convert>

<convert type="RemainingToText">InMinutes</convert>

</widget>

<widget source="session.Event_Next" render="Label" position="88,79" size="50,21" font="Regular;19" valign="top" backgroundColor="background" foregroundColor="grey" >

<convert type="EventTime">StartTime</convert>

<convert type="ClockToText">Default</convert>

</widget>

<widget source="session.Event_Next" render="Label" position="140,79" size="320,21" font="Regular;19" valign="top" backgroundColor="background" foregroundColor="grey" >

<convert type="EventName">Name</convert>

</widget>

<widget source="session.Event_Next" render="Label" position="470,79" size="85,21" font="Regular;19" valign="top" halign="right" backgroundColor="background" foregroundColor="grey" >

<convert type="EventTime">Duration</convert>

<convert type="ClockToText">InMinutes</convert>

</widget>

<widget source="session.RecordState" render="Pixmap" pixmap="~/record.png" position="348,9" zPosition="2" size="12,12" alphatest="off">

<convert type="ConditionalShowHide">Blink</convert>

</widget>

<widget source="session.CurrentService" render="Pixmap" pixmap="~/ico_subservices_on.png" position="14,9" size="13,13" alphatest="on" >

<convert type="ServiceInfo">SubservicesAvailable</convert>

<convert type="ConditionalShowHide" />

</widget>

<ePixmap name="UnCrypted" pixmap="~/ico_crypt_off.png" position="536,103" size="18,12" alphatest="on" />

<widget source="session.CurrentService" render="Pixmap" pixmap="~/ico_crypt_on.png" position="536,103" zPosition="2" size="18,12" alphatest="on" >

<convert type="ServiceInfo">IsCrypted</convert>

<convert type="ConditionalShowHide" />

</widget>

<ePixmap name="NoTelext" pixmap="~/ico_txt_off.png" position="425,9" size="18,12" alphatest="on" />

<widget source="session.CurrentService" render="Pixmap" pixmap="~/ico_txt_on.png" position="425,9" zPosition="2" size="18,12" alphatest="on" >

<convert type="ServiceInfo">HasTelext</convert>

<convert type="ConditionalShowHide" />

</widget>

<ePixmap name="NoMultichannel" pixmap="~/ico_dolby_off.png" position="473,9" size="18,12" alphatest="on" />

<widget source="session.CurrentService" render="Pixmap" pixmap="~/ico_dolby_on.png" position="473,9" zPosition="2" size="18,12" alphatest="on" >

<convert type="ServiceInfo">IsMultichannel</convert>

<convert type="ConditionalShowHide" />

</widget>

<ePixmap name="NoWidescreen" pixmap="~/ico_format_off.png" position="449,9" size="18,12" alphatest="on" />

<widget source="session.CurrentService" render="Pixmap" pixmap="~/ico_format_on.png" position="449,9" zPosition="2" size="18,12" alphatest="on" >

<convert type="ServiceInfo">IsWidescreen</convert>

<convert type="ConditionalShowHide" />

</widget>

</screen>



<screen name="MediaPlayer" position="0,0" size="720,576" title="MediaPlayer">

<ePixmap position="0,0" zPosition="-1" size="720,576" pixmap="~/mediaplayer_bg.png" />

<ePixmap position="57,46" zPosition="2" size="126,141" pixmap="~/mediaplayer_icon.png" transparent="1" alphatest="on" />

<ePixmap position="195,46" zPosition="2" size="316,141" pixmap="~/mediaplayer_playing_bg.png" transparent="1" alphatest="on" />

<ePixmap position="525,46" zPosition="2" size="133,141" pixmap="~/no_coverArt.png" transparent="1" alphatest="on" />

<ePixmap position="57,187" zPosition="2" size="603,327" pixmap="~/mediaplayer_frame.png" transparent="1" alphatest="on" />

<ePixmap position="108,480" zPosition="3" size="108,13" pixmap="~/mp_buttons.png" transparent="1" alphatest="on" />

<eLabel position="61,218" zPosition="2" size="200,287" backgroundColor="background" />

<eLabel position="276,218" zPosition="2" size="380,287" backgroundColor="background" />

<widget name="artisttext" position="208,56" zPosition="3" size="65,19" font="Regular;18" valign="top" foregroundColor="grey" />

<widget name="artist" position="273,56" zPosition="3" size="230,19" font="Regular;18" valign="top" />

<widget name="albumtext" position="208,76" zPosition="3" size="65,19" font="Regular;18" valign="top" foregroundColor="grey" />

<widget name="album" position="273,76" zPosition="3" size="230,19" font="Regular;18" valign="top" />

<widget name="yeartext" position="208,96" zPosition="3" size="65,19" font="Regular;18" valign="top" foregroundColor="grey" />

<widget name="year" position="273,96" zPosition="3" size="230,19" font="Regular;18" valign="top" />

<widget name="genretext" position="208,116" zPosition="3" size="65,19" font="Regular;18" valign="top" foregroundColor="grey"/>

<widget name="genre" position="273,116" zPosition="3" size="230,19" font="Regular;18" valign="top" />

<widget name="titletext" position="208,136" zPosition="3" size="65,19" font="Regular;18" valign="top" foregroundColor="grey" />

<widget name="title" position="273,136" zPosition="4" size="230,19" font="Regular;18" valign="top" />

<widget name="coverArt" position="541,48" zPosition="3" size="116,116" pixmap="~/no_coverArt.png" />

<widget name="PositionGauge" position="217,161" zPosition="3" size="268,7" pointer="~/position_pointer.png:0,2" transparent="1" />

<eLabel position="85,194" zPosition="5" size="155,25" text="FileList" font="Regular;18" valign="top" transparent="1" shadowColor="black" shadowOffset="-1,-1" />

<widget name="filelist" position="61,218" zPosition="3" size="200,253" scrollbarMode="showOnDemand" />

<eLabel position="300,194" zPosition="5" size="330,25" text="PlayList" font="Regular;18" valign="top" transparent="1" shadowColor="black" shadowOffset="-1,-1" />

<widget name="playlist" position="276,218" zPosition="3" size="379,286" transparent="1" scrollbarMode="showOnDemand" selectionDisabled="1" />

<ePixmap position="278,239" zPosition="3" size="355,266" pixmap="~/playlist_div.png" transparent="1" alphatest="on"/>

<widget name="currenttext" position="69,527" zPosition="3" size="597,22" font="Regular;18" halign="center" transparent="1" shadowColor="black" shadowOffset="-1,-1" />

</screen>



<screen name="MoviePlayer" flags="wfNoBorder" position="75,440" size="570,90" title="MoviePlayer" backgroundColor="transparent" >

<ePixmap position="0,0" zPosition="-1" size="570,90" pixmap="~/infobar_zap.png" alphatest="on" />

<eLabel position="4,31" zPosition="-1" size="562,50" backgroundColor="background" />

<ePixmap position="440,8" zPosition="1" size="108,13" pixmap="~/mp_buttons.png" transparent="1" alphatest="on" />

<ePixmap position="0,66" zPosition="1" size="570,24" pixmap="~/position_pointer_bg.png" />

<eLabel position="77,86" zPosition="5" size="568,3" backgroundColor="#343434" />

<eLabel position="77,89" zPosition="5" size="568,1" backgroundColor="#191919" />

<eLabel position="20,6" zPosition="5" size="300,25" text="MoviePlayer" font="Regular;18" valign="top" backgroundColor="background" transparent="1" shadowColor="black" shadowOffset="-1,-1" />

<widget source="session.CurrentService" render="Label" position="4,31" zPosition="4" size="562,35" font="Regular;18" halign="center" valign="center" backgroundColor="background" >

<convert type="ServiceName">Name</convert>

</widget>

<widget source="session.CurrentService" render="Label" position="4,71" zPosition="4" size="75,14" valign="center" halign="center" font="Regular;18" backgroundColor="background" transparent="1" shadowColor="black" shadowOffset="-1,-1" >

<convert type="ServicePosition">Position</convert>

</widget>

<widget source="session.CurrentService" render="Label" position="491,71" zPosition="4" size="75,14" valign="center" halign="center" font="Regular;18" backgroundColor="background" transparent="1" shadowColor="black" shadowOffset="-1,-1" >

<convert type="ServicePosition">Remaining</convert>

</widget>

<widget source="session.CurrentService" render="PositionGauge" pointer="~/position_pointer_big.png:0,6" position="84,70" zPosition="4" size="403,25" transparent="1" >

<convert type="ServicePosition">Gauge</convert>

</widget>

</screen>



<screen name="MovieSelection" position="80,80" size="560,445" title="Select a movie">

<ePixmap pixmap="~/key_red.png" position="0,0" zPosition="0" size="140,30" alphatest="on" />

<ePixmap pixmap="~/key_green.png" position="140,0" zPosition="0" size="140,30" alphatest="on" />

<ePixmap pixmap="~/key_yellow.png" position="280,0" zPosition="0" size="140,30" alphatest="on" />

<ePixmap pixmap="~/key_blue.png" position="420,0" zPosition="0" size="140,30" alphatest="on" />

<widget name="key_red" position="0,0" zPosition="1" size="140,30" font="Regular;18" valign="center" halign="center" backgroundColor="#9f1313" transparent="1" />

<widget name="key_green" position="140,0" zPosition="1" size="140,30" font="Regular;18" valign="center" halign="center" backgroundColor="#1f771f" transparent="1" />

<widget name="key_yellow" position="280,0" zPosition="1" size="140,30" font="Regular;18" valign="center" halign="center" backgroundColor="#a08500" transparent="1" />

<widget name="key_blue" position="420,0" zPosition="1" size="140,30" font="Regular;18" valign="center" halign="center" backgroundColor="#18188b" transparent="1" />

<widget name="waitingtext" position="0,45" size="560,395" zPosition="4" font="Regular;20" valign="center" halign="center" />

<widget name="list" position="0,40" size="560,375" zPosition="2" scrollbarMode="showOnDemand" />

<widget name="DescriptionBorder" pixmap="~/border_eventinfo.png" position="0,316" zPosition="1" size="560,103" transparent="1" alphatest="on" />

<widget source="Service" render="Label" position="5,318" zPosition="1" size="480,35" font="Regular;17" foregroundColor="#cccccc" >

<convert type="MovieInfo">ShortDescription</convert>

</widget>

<widget source="Service" render="Label" position="495,318" zPosition="1" size="60,22" font="Regular;17" halign="right" >

<convert type="ServiceTime">Duration</convert>

<convert type="ClockToText">AsLength</convert>

</widget>

<widget source="Service" render="Label" position="380,337" zPosition="2" size="175,22" font="Regular;17" halign="right" >

<convert type="MovieInfo">RecordServiceName</convert>

</widget>

<widget source="Service" render="Label" position="5,357" zPosition="1" size="550,58" font="Regular;19" >

<convert type="EventName">ExtendedDescription</convert>

</widget>

<widget name="freeDiskSpace" position="10,425" size="540,20" font="Regular;19" valign="center" halign="right" />

</screen>



<screen name="Setup" position="90,150" size="540,310" title="Setup">

<widget name="title" position="10,10" size="280,35" font="Regular;23" foregroundColor="#cccccc" />

<widget name="config" position="10,50" size="520,200" scrollbarMode="showOnDemand" />

<widget name="cancel" position="10,260" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<widget name="canceltext" position="10,260" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="ok" position="390,260" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<widget name="oktext" position="390,260" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

</screen>



<screen name="configOSD" position="130,113" size="460,350" title="OSD Settings">

<widget name="okbutton" position="150,270" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<eLabel name="oktext" position="150,270" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="txt_alpha" position="20,20" size="110,20" />

<widget name="sld_alpha" position="150,20" size="290,20" />

<widget name="txt_brightness" position="20,60" size="120,20" />

<widget name="sld_brightness" position="150,20" size="290,20" />

<widget name="txt_gamma" position="20,100" size="120,20" />

<widget name="sld_gamma" position="150,100" size="290,20" />

</screen>



<screen name="HarddiskSetup" position="150,210" size="420,160" title="Harddisk">

<widget name="model" position="20,10" size="380,25" font="Regular;20" />

<widget name="capacity" position="20,40" size="380,25" font="Regular;20" />

<widget name="bus" position="20,70" size="380,25" font="Regular;20" />

<widget name="initialize" position="140,115" zPosition="1" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<widget name="initializetext" position="140,117" zPosition="2" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

</screen>



<screen name="PluginBrowser" position="150,115" size="420,360" title="Plugin browser">

<widget name="list" position="10,50" size="400,300" scrollbarMode="showOnDemand" />

<ePixmap name="remove" position="5,5" zPosition="1" pixmap="~/key_red_big.png" size="200,40" alphatest="on" />

<ePixmap name="download" position="215,5" zPosition="1" pixmap="~/key_green_big.png" size="200,40" alphatest="on" />

<widget name="red" position="5,5" zPosition="2" size="200,40" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="green" position="215,5" zPosition="2" size="200,40" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

</screen>



<screen name="ServiceInfo" position="80,120" size="560,370" title="Serviceinfo">

<ePixmap name="bg_red" position="0,0" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<ePixmap name="bg_green" position="140,0" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<ePixmap name="bg_yellow" position="280,0" size="140,30" pixmap="~/key_yellow.png" transparent="1" alphatest="on" />

<ePixmap name="bg_blue" position="420,0" size="140,30" pixmap="~/key_blue.png" transparent="1" alphatest="on" />

<widget name="red" position="0,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="green" position="140,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="yellow" position="280,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="blue" position="420,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="infolist" position="20,50" size="560,365" selectionDisabled="1"/>

</screen>



<screen name="TimerEdit" position="90,95" size="560,425" title="Timer Edit">

<widget name="description" position="10,10" size="560,40" font="Regular;21" />

<widget name="lbegin" position="405,102" size="103,30" font="Regular;21" foregroundColor="red" />

<widget name="lend" position="405,158" size="103,30" font="Regular;21" foregroundColor="green" />

<widget name="begin" position="508,105" size="72,35" font="Regular;21" />

<widget name="end" position="508,150" size="72,35" font="Regular;21" />

<widget name="apply" position="10,240" size="250,35" />

</screen>



<screen name="TimerEditList" position="80,100" size="560,417" title="Timer Editor">

<ePixmap name="red" position="0,0" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<ePixmap name="green" position="140,0" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<ePixmap name="yellow" position="280,0" size="140,30" pixmap="~/key_yellow.png" transparent="1" alphatest="on" />

<ePixmap name="blue" position="420,0" size="140,30" pixmap="~/key_blue.png" transparent="1" alphatest="on" />

<widget name="key_red" position="0,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="key_green" position="140,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="key_yellow" position="280,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="key_blue" position="420,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="timerlist" position="0,45" size="560,364" scrollbarMode="showOnDemand" />

</screen>



<screen name="TimerEntry" position="80,95" size="560,430" title="Timer entry">

<widget name="config" position="10,10" size="540,350" scrollbarMode="showOnDemand" />

<widget name="cancel" position="10,375" zPosition="1" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<widget name="canceltext" position="10,375" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="ok" position="410,375" zPosition="1" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<widget name="oktext" position="410,375" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

</screen>



<screen name="TimeDateInput" position="160,150" size="400,270" title="Time/Date Input">

<widget name="config" position="10,10" size="380,200" />

<widget name="cancel" position="10,220" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<widget name="canceltext" position="10,220" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="ok" position="250,220" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<widget name="oktext" position="250,220" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

</screen>



<screen name="TimerSanityConflict" position="60,100" size="600,400" title="Timer sanity error">

<ePixmap name="red" position="0,0" size="140,30" pixmap="~/key_red.png" transparent="1" alphatest="on" />

<ePixmap name="green" position="140,0" size="140,30" pixmap="~/key_green.png" transparent="1" alphatest="on" />

<ePixmap name="yellow" position="280,0" size="140,30" pixmap="~/key_yellow.png" transparent="1" alphatest="on" />

<ePixmap name="blue" position="420,0" size="140,30" pixmap="~/key_blue.png" transparent="1" alphatest="on" />

<widget name="key_red" position="0,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="key_green" position="140,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="key_yellow" position="280,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="key_blue" position="420,0" zPosition="2" size="140,30" valign="center" halign="center" font="Regular;18" transparent="1" foregroundColor="KeyForeground" shadowColor="black" shadowOffset="-1,-1" />

<widget name="timer1" position="0,45" size="290,80" scrollbarMode="showOnDemand" />

<widget name="timer2" position="310,45" size="280,80" scrollbarMode="showOnDemand" />

<widget name="list" position="0,160" size="250,240" scrollbarMode="showOnDemand" />

</screen>



<screen name="TimerLog" position="90,95" size="560,425" title="Timer log">

<ePixmap position="0,4" pixmap="~/key_red.png" size="140,30" alphatest="on" />

<ePixmap position="140,4" pixmap="~/key_green.png" size="140,30" alphatest="on" />

<ePixmap position="280,4" pixmap="~/key_yellow.png" size="140,30" alphatest="on" />

<ePixmap position="420,4" pixmap="~/key_blue.png" size="140,30" alphatest="on" />

<widget name="key_red" position="0,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_green" position="140,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_yellow" position="280,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_blue" position="420,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="loglist" position="10,38" size="540,250" scrollbarMode="showOnDemand" />

<widget name="logentry" position="10,300" size="540,140" font="Regular;20" />

</screen>



<screen name="Volume" flags="wfNoBorder" position="465,50" size="180,20" title="Volume" zPosition="1" >

<ePixmap position="0,0" zPosition="0" size="180,20" pixmap="~/volume-bg.png" />

<widget name="Volume" position="12,4" zPosition="1" size="156,12" pixmap="~/volume_bar.png" backgroundColor="transparent" transparent="1" />

</screen>



<screen name="Mute" position="343,90" zPosition="10" size="34,45" title="Mute" flags="wfNoBorder" >

<ePixmap position="0,0" size="34,45" pixmap="~/mute.png"/>

</screen>



<screen name="SimpleChannelSelection" position="80,80" size="560,410" title="Channel Selection">

<ePixmap position="0,4" pixmap="~/key_red.png" size="140,30" alphatest="on" />

<ePixmap position="140,4" pixmap="~/key_green.png" size="140,30" alphatest="on" />

<ePixmap position="280,4" pixmap="~/key_yellow.png" size="140,30" alphatest="on" />

<ePixmap position="420,4" pixmap="~/key_blue.png" size="140,30" alphatest="on" />

<widget name="key_red" position="0,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_green" position="140,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_yellow" position="280,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_blue" position="420,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="list" position="0,38" size="560,364" scrollbarMode="showOnDemand" />

</screen>



<screen name="ChannelSelection" position="80,80" size="560,450" title="Channel Selection">

<ePixmap position="0,4" pixmap="~/key_red.png" size="140,30" alphatest="on" />

<ePixmap position="140,4" pixmap="~/key_green.png" size="140,30" alphatest="on" />

<ePixmap position="280,4" pixmap="~/key_yellow.png" size="140,30" alphatest="on" />

<ePixmap position="420,4" pixmap="~/key_blue.png" size="140,30" alphatest="on" />

<widget name="key_red" position="0,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_green" position="140,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_yellow" position="280,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_blue" position="420,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="list" position="0,38" size="560,280" scrollbarMode="showOnDemand" />

<ePixmap pixmap="~/border_eventinfo.png" position="0,341" zPosition="1" size="560,103" transparent="1" alphatest="on" />

<widget source="ServiceEvent" render="Label" position="10,347" zPosition="1" size="460,20" font="Regular;19" noWrap="1" >

<convert type="EventName">Name</convert>

</widget>

<ePixmap pixmap="~/clock.png" position="483,349" zPosition="1" size="14,14" alphatest="on"/>

<widget source="global.CurrentTime" render="Label" position="500,347" zPosition="1" size="50,20" font="Regular;18" halign="right" >

<convert type="ClockToText"></convert>

</widget>

<widget source="ServiceEvent" render="Label" position="210,367" zPosition="1" size="260,20" font="Regular;18" halign="right" noWrap="1" >

<convert type="ServiceName">Name</convert>

</widget>

<widget source="ServiceEvent" render="Label" position="490,367" zPosition="1" size="60,20" font="Regular;18" halign="right" noWrap="1" >

<convert type="ServiceOrbitalPosition"></convert>

</widget>

<widget source="ServiceEvent" render="Label" position="10,367" zPosition="1" size="50,22" font="Regular;18" >

<convert type="EventTime">StartTime</convert>

<convert type="ClockToText"></convert>

</widget>

<widget source="ServiceEvent" render="Label" position="60,367" zPosition="1" size="70,22" font="Regular;18" >

<convert type="EventTime">EndTime</convert>

<convert type="ClockToText">Format:- %H:%M</convert>

</widget>

<widget source="ServiceEvent" render="Progress" position="125,370" zPosition="1" pixmap="~/progress_medium.png" size="80,11" borderWidth="2" borderColor="#cccccc" >

<convert type="EventTime">Progress</convert>

</widget>

<widget source="ServiceEvent" render="Label" position="10,388" zPosition="1" size="540,55" font="Regular;18" foregroundColor="#cccccc" >

<convert type="EventName">ExtendedDescription</convert>

</widget>

</screen>



<screen name="ChannelSelectionRadio" position="80,80" size="560,290" title="Channel Selection" >

<ePixmap position="0,4" pixmap="~/key_red.png" size="140,30" alphatest="on" />

<ePixmap position="140,4" pixmap="~/key_green.png" size="140,30" alphatest="on" />

<ePixmap position="280,4" pixmap="~/key_yellow.png" size="140,30" alphatest="on" />

<ePixmap position="420,4" pixmap="~/key_blue.png" size="140,30" alphatest="on" />

<widget name="key_red" position="0,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_green" position="140,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_yellow" position="280,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_blue" position="420,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="list" position="5,38" size="550,252" scrollbarMode="showOnDemand" />

</screen>



<screen name="RadioInfoBar" position="90,420" size="560,110" zPosition="-1" title="Radio" >

<widget source="session.CurrentService" render="Label" position="5,2" size="325,26" font="Regular;22" transparent="1" >

<convert type="ServiceName">Name</convert>

</widget>

<widget source="RdsDecoder" render="Pixmap" pixmap="~/rass_logo.png" position="330,0" size="50,21" alphatest="on" >

<convert type="RdsInfo">RasInteractiveAvailable</convert>

<convert type="ConditionalShowHide" />

</widget>

<widget source="session.Event_Now" render="Progress" pixmap="~/volume_bar.png" position="400,5" zPosition="2" size="65,12" borderWidth="1" >

<convert type="EventTime">Progress</convert>

</widget>

<widget source="global.CurrentTime" render="Label" position="465,2" size="90,28" font="Regular;22" halign="right" transparent="1" >

<convert type="ClockToText">WithSeconds</convert>

</widget>

<widget source="session.Event_Now" render="Label" position="5,22" size="60,22" font="Regular;20" transparent="1" >

<convert type="EventTime">StartTime</convert>

<convert type="ClockToText">Default</convert>

</widget>

<widget source="session.Event_Now" render="Label" position="73,22" size="390,22" font="Regular;20" valign="top" transparent="1" >

<convert type="EventName">Name</convert>

</widget>

<widget source="session.Event_Now" render="Label" position="465,22" size="90,22" font="Regular;20" halign="right" transparent="1" >

<convert type="EventTime">Remaining</convert>

<convert type="RemainingToText">InMinutes</convert>

</widget>

<widget source="session.Event_Next" render="Label" position="5,42" size="60,22" font="Regular;20" transparent="1" >

<convert type="EventTime">StartTime</convert>

<convert type="ClockToText">Default</convert>

</widget>

<widget source="session.Event_Next" render="Label" position="73,42" size="390,22" font="Regular;20" valign="top" transparent="1" >

<convert type="EventName">Name</convert>

</widget>

<widget source="session.Event_Next" render="Label" position="465,42" size="90,22" font="Regular;20" halign="right" transparent="1" >

<convert type="EventTime">Duration</convert>

<convert type="ClockToText">InMinutes</convert>

</widget>

<eLabel position="5,63" size="550,1" backgroundColor="darkgrey" />

<eLabel position="5,64" size="550,1" backgroundColor="black" />

<widget source="RdsDecoder" render="Label" position="5,65" size="550,45" font="LCD;20" >

<convert type="RdsInfo">RadioText</convert>

</widget>

</screen>



<screen name="EPGSelection" position="80,70" size="560,440" title="EPG Selection">

<ePixmap position="0,4" pixmap="~/key_red.png" size="140,30" alphatest="on" />

<ePixmap position="140,4" pixmap="~/key_green.png" size="140,30" alphatest="on" />

<ePixmap position="280,4" pixmap="~/key_yellow.png" size="140,30" alphatest="on" />

<ePixmap position="420,4" pixmap="~/key_blue.png" size="140,30" alphatest="on" />

<widget name="key_red" position="0,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_green" position="140,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_yellow" position="280,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_blue" position="420,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="list" position="10,45" size="540,375" scrollbarMode="showOnDemand" />

</screen>



<screen name="EPGSelectionMulti" position="80,70" size="560,440" title="EPG Selection">

<ePixmap position="0,4" pixmap="~/key_red.png" size="140,30" alphatest="on" />

<ePixmap position="140,4" pixmap="~/key_green.png" size="140,30" alphatest="on" />

<ePixmap position="280,4" pixmap="~/key_yellow.png" size="140,30" alphatest="on" />

<ePixmap position="420,4" pixmap="~/key_blue.png" size="140,30" alphatest="on" />

<widget name="key_red" position="0,6" zPosition="1" size="140,28" font="Regular;18" valign="center" halign="center" backgroundColor="black" transparent="1" />

<widget name="key_green" position="140,6" zPosition="1" size="140,

[hemertje]

wanneer er niets gespecificeerd in de desbetreffende skin dan worden de gegevens uit de standaard skin in een mapje hoger uitgelezen en gebruikt



misschien is dat hier het geval?



[Fabian]

In zowel de skin_default.xml als skin.xml (beide mappen) kan ik niks vinden van iets van in de trent Channel Not Available of Service Not Available en de bijbehorende kleur?





[Happy2000]

Dit verander je in het gedeelte van:

<screen name="ChannelSelection" position="80,80" size="560,450" title="Channel Selection">



Hier zie je <widget name="list" en daar kun je de kleur neer zetten als je die anders wilt hebben bv: foregroundColorServiceNotAvail="#666666"

[Fabian]

Dit heb ik inderdaad wel gezien, zie:

Citaat:

<screen name="ChannelSelection" position="80,80" size="560,450" title="Channel Selection">



...



<widget name="list" position="0,38" size="560,280" scrollbarMode="showOnDemand" />

Als de code "foregroundColorServiceNotAvail" er niet bij staat, mag je dan een nieuwe extra regel met "widget name=list" erbij voegen?

[Happy2000]

Nee die zet je bij de regel in bv



<widget name="list" position="0,38" size="560,280" scrollbarMode="showOnDemand" foregroundColorServiceNotAvail="#666666" />

[Fabian]

Dat heb ik inderdaad ook al geprobeerd, alleen toen wilde mijn box niet meer opstarten, hij bleef in een loop hangen. Wat mij opviel is dat er twee Channelselections zijn in de skin.xml bestand van Black box: Channelselection en SimpleChannelselection. Zit hier soms verschil in?

[Happy2000]

Je moet de gewone channelselection hebben niet de simple.



Wat voor dreambox heb je?



Heb even gekeken in mij 8000 en dit staat er bij mij in



<widget name="list" position="15,12" size="730,496" zPosition="3" scrollbarMode="showOnDemand" foregroundColorServiceNotAvail="#666666" serviceItemHeight="31" serviceNumberFont="Regular;23" serviceNameFont="Regular;23" serviceInfoFont="Regular;21" />



Let wel op dat je het voor /> plaatst.

[Fabian]

7025+ en ik gebruik de Black box skin in een Pli Jade3 image.

[Happy2000]

Als foregroundColorServiceNotAvail= niet werkt op de 7025 met pli dan moet ik je het antwoord schuldig blijven.

Je hebt niet een type fout gemaakt?
