Ervaringen met TBS 6921 DVB-S2 kaart

[Crazy Sat]

Zie dat deze DVB-S2 kaart een blindscanfunctie heeft.

Is natuurlijk heel interessant voor feedhunters. Is er iemand die reeds ervaring heeft met deze PC kaart ( of er al ene heeft).

Graag had ik even wat meer vernomen omtrent deze PC kaart.

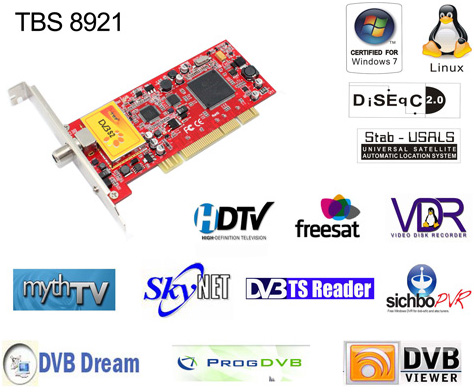

Even de specificaties :



PCI DVB-S2 TV card supports both DVB-S2 and DVB-S program receiving. It support internet via satellite and dvb data downloading.

Main Features:



1.DVB-S2/S Transponders Receiving

2.Transponders blind scan (both for DVB-S2 and DVB-S)

3.Broadband Internet via Satellite*

4.High-speed Data download via Satellite*

5.Windows 7 Media Center compatible

6.Linux S2API drivers compatible with MythTV, VDR, XBMC, DVBLast, VLC, etc.

7.Supported by DVBDream, DVBViewer, DVBlogic, ProgDVB, AltDVB, Skynet, TSreader…





Specifications:



1.Receiving Frequency: 925 ~ 2175 MHz Tuning Range

2.Input level: -69 ~ -23dBm

3.DVB-S2/DVB-S DIRECTV 8PSK QPSK Demodulator

4. 8PSK/H-8PSK/QPSK/BPSK mode

5. Symbol Rates:

DVB-S: 1 - 45 Msps

DVB-S2 QPSK: 1 - 45 Msps

DVB-S2 8PSK: 1 - 45 Msps

6. Code Rates:

DVS-S: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2 8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

7. Automatic Acquisition Range: ±10MHz

8. DiSEqC 2.x compliant

9. PCI interface, Low profile size



System Requirements:



Windows 2000 / XP / Vista

DirectX9.0C or later

Pentium 2.0 GHz CPU or above

256MB RAM or above

VGA card with at least 32MB memory

Sound card or on board sound chip

Digital Satellite Dish & LNB
