cookie monster Geplaatst: 3 september 2011 Geplaatst: 3 september 2011 DVB-S2 8PSK (No lock) Vraag 1: Reported by cookie monster on 2011-09-03 09:46 pm 1 Comment Express AM 22 (53.0°E) Frequency: 12635 - Pol: V - SR: 2893 - FEC: - Category: Autre Transmitted in: MPEG-2 4:2:0 (PAL) Comments: (No lock) DATA ?? Powersky 1900 DVB-S = 0000% Nokia 9200 DVB-S = 0000% Smart MX 04 HDCA DVB-S2 = goed !! Vraaag 2: 12603 V (iets maa geeen DVB-S of DVB-S2 QPSK of 8PSK !!) Posted by cookie monster on 2011-09-03 10:51 pm 12603 V No DVB-S(2) QPSK or 8PSK getestmet Nokia 9200 "spectrumanalyzre" C o o kie M o nster C U L'8'R WEIRDOGAToRS I was born once , as an invasion of the bodysnatchers , but the doctor did get a brain-attack !! my name: breedbandwurger 1967 casa CM: FTA DVB-S & FTA DVB-S2

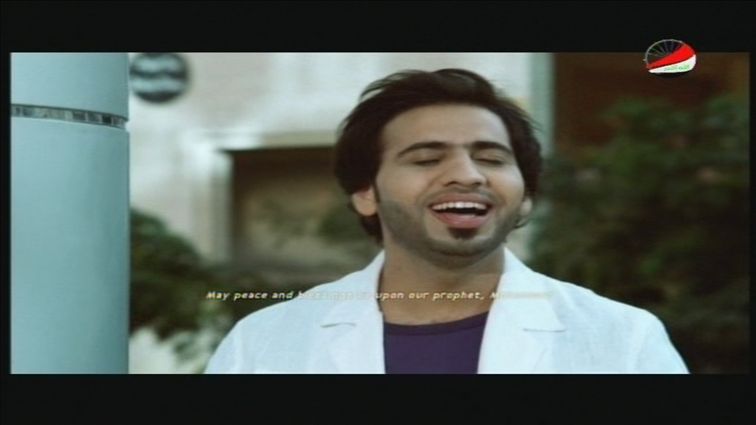

Crazy Sat Geplaatst: 4 september 2011 Geplaatst: 4 september 2011 Even op deze Sat Easy Blind Scan (i.c.m. TT-1600 kaart) losgelaten. Op de 12635 V 2893 , vind je de Iraakse zender AL ANBAR Op de 12603 .... niets , maar is waarschijnlijk een feedzender. Hierbij het scanrapport ( enkel gescand met feedranges , dus er zitten meerdere normale zenders op deze sat ) op de 53,0E (Express AM 22) TP N: 1 Frequency: 11097.658 Mhz Symbol rate: 3125 KS Polarization: Vertical Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 7/8 RollOff: 0.35 RF-Level: -49 dBm Signal/Noise: 9.8 dB Carrier width: 4.218 Mhz BitRate: 5.040 Mbit/s ---------------------------------------- TP N: 2 Frequency: 11124.250 Mhz Symbol rate: 8776 KS Polarization: Vertical Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 5/6 RollOff: 0.35 RF-Level: -47 dBm Signal/Noise: 8.9 dB Carrier width: 11.848 Mhz BitRate: 13.480 Mbit/s ---------------------------------------- TP N: 3 Frequency: 11144.674 Mhz Symbol rate: 1736 KS Polarization: Vertical Spectrum: Normal Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -51 dBm Signal/Noise: 9.1 dB Carrier width: 2.343 Mhz BitRate: 2.400 Mbit/s ---------------------------------------- TP N: 4 Frequency: 11160.442 Mhz Symbol rate: 5787 KS Polarization: Vertical Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -46 dBm Signal/Noise: 10.1 dB Carrier width: 7.813 Mhz BitRate: 8.000 Mbit/s ---------------------------------------- TP N: 5 Frequency: 11522.472 Mhz Symbol rate: 2894 KS Polarization: Horizontal Spectrum: Normal Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -50 dBm Signal/Noise: 9.9 dB Carrier width: 3.907 Mhz BitRate: 4.001 Mbit/s ---------------------------------------- TP N: 6 Frequency: 11561.599 Mhz Symbol rate: 2500 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 5/6 RollOff: 0.35 RF-Level: -47 dBm Signal/Noise: 13.2 dB Carrier width: 3.375 Mhz BitRate: 3.840 Mbit/s ---------------------------------------- TP N: 7 Frequency: 11659.539 Mhz Symbol rate: 2170 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -48 dBm Signal/Noise: 14.7 dB Carrier width: 2.929 Mhz BitRate: 3.000 Mbit/s ---------------------------------------- TP N: 8 Frequency: 12634.002 Mhz Symbol rate: 2170 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -54 dBm Signal/Noise: 7.5 dB Carrier width: 2.929 Mhz BitRate: 3.000 Mbit/s ---------------------------------------- TP N: 9 Frequency: 12635.991 Mhz Symbol rate: 2748 KS Polarization: Vertical Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -53 dBm Signal/Noise: 9.2 dB Carrier width: 3.709 Mhz BitRate: 3.799 Mbit/s ---------------------------------------- TP N: 10 Frequency: 12638.442 Mhz Symbol rate: 2532 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -54 dBm Signal/Noise: 7.2 dB Carrier width: 3.418 Mhz BitRate: 3.500 Mbit/s ---------------------------------------- TP N: 11 Frequency: 12639.728 Mhz Symbol rate: 2894 KS Polarization: Vertical Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -53 dBm Signal/Noise: 9.1 dB Carrier width: 3.907 Mhz BitRate: 4.001 Mbit/s ---------------------------------------- TP N: 12 Frequency: 12645.465 Mhz Symbol rate: 2170 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -53 dBm Signal/Noise: 7.0 dB Carrier width: 2.929 Mhz BitRate: 3.000 Mbit/s ---------------------------------------- TP N: 13 Frequency: 12648.714 Mhz Symbol rate: 2894 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -53 dBm Signal/Noise: 8.7 dB Carrier width: 3.906 Mhz BitRate: 4.001 Mbit/s ---------------------------------------- TP N: 14 Frequency: 12652.338 Mhz Symbol rate: 2532 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -53 dBm Signal/Noise: 8.3 dB Carrier width: 3.418 Mhz BitRate: 3.500 Mbit/s ---------------------------------------- TP N: 15 Frequency: 12668.040 Mhz Symbol rate: 2894 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -52 dBm Signal/Noise: 7.1 dB Carrier width: 3.906 Mhz BitRate: 4.001 Mbit/s ---------------------------------------- TP N: 16 Frequency: 12696.583 Mhz Symbol rate: 3333 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S2/8PSK FEC: 3/4 RollOff: 0.35 Pilot: on Coding mode: CCM Long frame Generic packetized stream Single input stream RF-Level: -52 dBm Signal/Noise: 12.6 dB Carrier width: 4.499 Mhz BitRate: 7.429 Mbit/s ---------------------------------------- TP N: 17 Frequency: 12722.825 Mhz Symbol rate: 1865 KS Polarization: Horizontal Spectrum: Inverted Standard/Modulation: DVB-S/QPSK FEC: 3/4 RollOff: 0.35 RF-Level: -54 dBm Signal/Noise: 11.5 dB Carrier width: 2.517 Mhz BitRate: 2.578 Mbit/s ---------------------------------------- Total Scan Time = 541.484s feedhunting , a crazy hobby ! Edison OS mio 4K UHD + Octagon SF8008 4K UHD + Dr.HD F15 + Edison OS mini + Technomate TM-5402 HD M3 CI , Moteck SG2100 + Deltastar 90 cm + Invacom C120 QDF-031 Quad lnb + SkyStar HD2,TBS5927 , en TT-budget S2-1600 kaart. Channel Master 180 cm schotel + ESX241 lnb voor C-band. DVB-T2 via Oostvleteren,Egem,Mont des Cats,Bouvigny en Doornik.
cookie monster Geplaatst: 4 september 2011 Auteur Geplaatst: 4 september 2011 Origineel bericht van: Crazy Sat Even op deze Sat Easy Blind Scan (i.c.m. TT-1600 kaart) losgelaten. Op de 12635 V 2893 , vind je de Iraakse zender AL ANBAR 12639 V DVB-S/MPEG-2 2894 3/4 Al Anbar Flysat / lyngsat + Nokia 9200 check 12635 V = feed Origineel bericht van: Crazy Sat Op de 12603 .... niets , maar is waarschijnlijk een feedzender. Of iest niet in DVB-S(2) QPSK / 8PSK Toch thx C o o kie M o nster C U L'8'R WEIRDOGAToRS I was born once , as an invasion of the bodysnatchers , but the doctor did get a brain-attack !! my name: breedbandwurger 1967 casa CM: FTA DVB-S & FTA DVB-S2
