Technisat Multyantenne voor 4 satellieten

[marco1980]

hallo vandaag een Technisat Multyantenne voor 4 satellieten gekocht en een orton xc403p reciever alles aan gesloten maar krijg geen beeld snap er niks van moet ik iets invullen in het menu??? ik ben een beginner

[Sprietje]

Beste Marco1080

Je moet in het menu instellen Diseqc 1.0

dan Astra 19,2 op 1 of a

Hotbird 13,0 op 2 of b

Astra 23,5 op 3 of c

Astra 28,2 op 4 of d

[marco1980]

ik kan Diseqc 1.0 niet vinden

[marco1980]

hele menu nagekeken kan geen Diseqc instellingen vinden

[dunhans]

Hallo Marco,

Jouw Orton xc403P is een kabelontvanger en is dus alleen te gebruiken voor bijvoorbeeld Ziggo, Delta, Caiway of zo.



Daarom zal je ook géén instellingen voor Diseqc kunnen vinden in het menu.



Koop dus een HD satellietontvanger en sluit die aan op je multytenne, dan zal het wel gaan.

[marco1980]

HD Kabel receiver

vergelijk dreambox 800 kabel

prijs goedkoper kwaliteit zelfde

ziggo en upc receiver

kan ook cardshering

cccam

mgcam

HD ontvanger voor de kabel. Geschikt om te sharen met ziggo, upc, caiway etcetera etcetera

Deze ontvanger heeft een hdmi aansluiting, opname mogelijkheid met usb, rs232 aansluiting, internet aansluiting, time shift met haarscherp beeld.

specificaties:

Orton HD X403P, Globo HD X403P, Opticum HD X403P are with:

1, LAN connector(Ethernet)

2, 1CI for CAM modules

3, 1 CA (Conax embedded)

4, HDMI, USB2.0

5, Ali 3602 solution

Specification:

- One slot for Smart Card in Conax system

- One Slot for Common Interface Module

- Support of SD/HD(MPEG2/MPEG4 H. 264), DVB-S, DVB-S2 system

- H igh reso lution video output-HDMI

- Standard resolution video output-SCART, RCA

- Supported video resolutions-576p, 720p, 1080I

- Front panel display-LED 4 digit

- Digital audio output S/PDIF-coaxial

- Analog audio output-RCA stereo

- Software update by USB, RS-232C

- 12V out for connecting external devices

- LAN connector (Ethernet)

- USB connector compliant with USB 2.0 standard

- Low power consumption in Stand-by mode, below 1W

- Automatic Stand-By mode after 3 hours from last using receiver for power saving

- Compatible with Diseqc 1.0, 1.1, 1.2 and USALS

- Electronic Program Guide-EPG

- Multilngual Menu, including English

- Time Shift (video pausing, rewinding)

- PVR Ready-possibility to record on external USB drive

- Recording one channel and watch another FTA channel within a single transponder

- Blind Scan supported

- Parental Lock for channels and Menu < br />- Po ssiility to save up to 5000 channels(TV and Radio)

- Fast channels switching

- Possibility of creating own channels lists

- Possibility of creating Favourite Lists

- Sort/Group/Channels search options

- Channel Editing features-Remove, Lock, Skip, Move, Rename

- Subtitle support-Teletext and DVB

- Teletext support

- Tool to convert files for playback on your computer

- Build-in Dolby Digital decoder(downmix to stereo)

- Colour-black

- OPTICUM USB HDD supported

- Channels Editor

- Support connection to an external FTP server (FTP client)

Main processor

- Type: ALI 3602

- Speed: 396 MHz

Memory

- FLASH size: 4 MBytes

- SDRAM size: 128 MBytes

Tuner & Channel Decoder (Satellite)

- Input connector

- Type: F-Type

- Standard: IEC 169-24

- Gender: Female

Loop through out

- Type: F-Type

- Standar d: IEC 1 69-24

- Gender: Female

- Frequency Range from 950MHz to 2150MHz

- Input impedance Value: 75 Ω , Type: Unbalanced

- Signal level from -65 dBm to -25 dBm

- LNB Power 13-18VDC Max. Current: 500 mA

- Overload Protection

22KHz Tone

- Frequency: 22 KHz± 1 KHz

- Amplitude: 0, 6± 0.2 V

DiSEqC Control: Version 1.0; Version 1.1; Version 1.2; USALS

Demodulation: 8PSK, QPSK

- Input Symbol Rate DVB-S from 2 Ms/s to 45 Ms/s

- Input Symbol Rate DVB-S2 QPSK from 10 Ms/s to 30 Ms/s

- Input Symbol Rate DVB-S2 8PSK from 10 Ms/s to 30 Ms/s

- FEC Decoder DVB-S: 1/2; 2/3; 3/4; 5/6; 7/8; AUTO

- FEC Decoder DVB-S2 (QPSK): 1/2; 2/3; 3/4; 3/5; 4/5; 5/6; 8/9; 9/10; AUTO

- FEC Decoder DVB-S2 (8PSK): 2/3; 3/4; 3/5; 5/6; 8/9; 9/10; AUTO

MPEG Transport Stream A/V Decoding

- Transport Stream

- MPEG-2 ISO/IEC 13818-1&MPEG-4 ISO/IEC 14496-1

- MPEG Profile level: MP EG-2 MP@M L&MPEG-2 M P@HL; MPEG-4 AVC/H. 264 HP@L4

- Aspect Ratio: 4: 3 Letter Box, 4: 3 Pan Scan, 16: 9

- Video Resolution: 720*576[PAL], 720*480[NTSC], 1920*1080I

- Audio Decoding: MPEG/MusiCam Layer 1; MPEG/MusiCam Layer 2; Dolby AC-3

- Audio ModeStereo: Join Stereo, Mono

- Sampling Rate: 32 KHz; 44, 1 KHz; 48 KHz

Front Panel

- Display: Digits 4

- Buttons Quantity: 7

- Slots Card Reader: 1

- Common Interface: 1

TV SCART

- Video CVBS output

- Video RGB output

- Audio R/L output

RCA

- Video CVBS output

- Audio R/L output: 1xR+L pair

- Digital Coaxial Audio output

- 0/12V output

- 12V DC RCA output

RS-232

- Type: 9-pin D-SUB

- Gender: Male

- Transfer Rate: 115, 2 bps

- 1*USB Type: 2.0

- 1*HDMI Slots: Version: 1.2

- ETHERNET: 1xRJ45

Power Supply

- Input VoltageType: AC 50/60Hz; From 100V to 25 0V

< br />Power Supply

- Type: SMPS

- Power Consumption: 12W max.

- Standby Power Consumption: <1W max.





waarom staat dit er dan bij DiSEqC Control: Version 1.0; Version 1.1; Version 1.2; USALS

[marco1980]

HD Kabel receiver

vergelijk dreambox 800 kabel

prijs goedkoper kwaliteit zelfde

ziggo en upc receiver

kan ook cardshering

cccam

mgcam

HD ontvanger voor de kabel. Geschikt om te sharen met ziggo, upc, caiway etcetera etcetera

Deze ontvanger heeft een hdmi aansluiting, opname mogelijkheid met usb, rs232 aansluiting, internet aansluiting, time shift met haarscherp beeld.

specificaties:

Orton HD X403P, Globo HD X403P, Opticum HD X403P are with:

1, LAN connector(Ethernet)

2, 1CI for CAM modules

3, 1 CA (Conax embedded)

4, HDMI, USB2.0

5, Ali 3602 solution

Specification:

- One slot for Smart Card in Conax system

- One Slot for Common Interface Module

- Support of SD/HD(MPEG2/MPEG4 H. 264), DVB-S, DVB-S2 system

- H igh reso lution video output-HDMI

- Standard resolution video output-SCART, RCA

- Supported video resolutions-576p, 720p, 1080I

- Front panel display-LED 4 digit

- Digital audio output S/PDIF-coaxial

- Analog audio output-RCA stereo

- Software update by USB, RS-232C

- 12V out for connecting external devices

- LAN connector (Ethernet)

- USB connector compliant with USB 2.0 standard

- Low power consumption in Stand-by mode, below 1W

- Automatic Stand-By mode after 3 hours from last using receiver for power saving

- Compatible with Diseqc 1.0, 1.1, 1.2 and USALS

- Electronic Program Guide-EPG

- Multilngual Menu, including English

- Time Shift (video pausing, rewinding)

- PVR Ready-possibility to record on external USB drive

- Recording one channel and watch another FTA channel within a single transponder

- Blind Scan supported

- Parental Lock for channels and Menu < br />- Po ssiility to save up to 5000 channels(TV and Radio)

- Fast channels switching

- Possibility of creating own channels lists

- Possibility of creating Favourite Lists

- Sort/Group/Channels search options

- Channel Editing features-Remove, Lock, Skip, Move, Rename

- Subtitle support-Teletext and DVB

- Teletext support

- Tool to convert files for playback on your computer

- Build-in Dolby Digital decoder(downmix to stereo)

- Colour-black

- OPTICUM USB HDD supported

- Channels Editor

- Support connection to an external FTP server (FTP client)

Main processor

- Type: ALI 3602

- Speed: 396 MHz

Memory

- FLASH size: 4 MBytes

- SDRAM size: 128 MBytes

Tuner & Channel Decoder (Satellite)

- Input connector

- Type: F-Type

- Standard: IEC 169-24

- Gender: Female

Loop through out

- Type: F-Type

- Standar d: IEC 1 69-24

- Gender: Female

- Frequency Range from 950MHz to 2150MHz

- Input impedance Value: 75 Ω , Type: Unbalanced

- Signal level from -65 dBm to -25 dBm

- LNB Power 13-18VDC Max. Current: 500 mA

- Overload Protection

22KHz Tone

- Frequency: 22 KHz± 1 KHz

- Amplitude: 0, 6± 0.2 V

DiSEqC Control: Version 1.0; Version 1.1; Version 1.2; USALS

Demodulation: 8PSK, QPSK

- Input Symbol Rate DVB-S from 2 Ms/s to 45 Ms/s

- Input Symbol Rate DVB-S2 QPSK from 10 Ms/s to 30 Ms/s

- Input Symbol Rate DVB-S2 8PSK from 10 Ms/s to 30 Ms/s

- FEC Decoder DVB-S: 1/2; 2/3; 3/4; 5/6; 7/8; AUTO

- FEC Decoder DVB-S2 (QPSK): 1/2; 2/3; 3/4; 3/5; 4/5; 5/6; 8/9; 9/10; AUTO

- FEC Decoder DVB-S2 (8PSK): 2/3; 3/4; 3/5; 5/6; 8/9; 9/10; AUTO

MPEG Transport Stream A/V Decoding

- Transport Stream

- MPEG-2 ISO/IEC 13818-1&MPEG-4 ISO/IEC 14496-1

- MPEG Profile level: MP EG-2 MP@M L&MPEG-2 M P@HL; MPEG-4 AVC/H. 264 HP@L4

- Aspect Ratio: 4: 3 Letter Box, 4: 3 Pan Scan, 16: 9

- Video Resolution: 720*576[PAL], 720*480[NTSC], 1920*1080I

- Audio Decoding: MPEG/MusiCam Layer 1; MPEG/MusiCam Layer 2; Dolby AC-3

- Audio ModeStereo: Join Stereo, Mono

- Sampling Rate: 32 KHz; 44, 1 KHz; 48 KHz

Front Panel

- Display: Digits 4

- Buttons Quantity: 7

- Slots Card Reader: 1

- Common Interface: 1

TV SCART

- Video CVBS output

- Video RGB output

- Audio R/L output

RCA

- Video CVBS output

- Audio R/L output: 1xR+L pair

- Digital Coaxial Audio output

- 0/12V output

- 12V DC RCA output

RS-232

- Type: 9-pin D-SUB

- Gender: Male

- Transfer Rate: 115, 2 bps

- 1*USB Type: 2.0

- 1*HDMI Slots: Version: 1.2

- ETHERNET: 1xRJ45

Power Supply

- Input VoltageType: AC 50/60Hz; From 100V to 25 0V

< br />Power Supply

- Type: SMPS

- Power Consumption: 12W max.

- Standby Power Consumption: <1W max.





waarom staat dit er dan bij DiSEqC Control: Version 1.0; Version 1.1; Version 1.2; USALS

en dit Tuner & Channel Decoder (Satellite)

[ceesv]

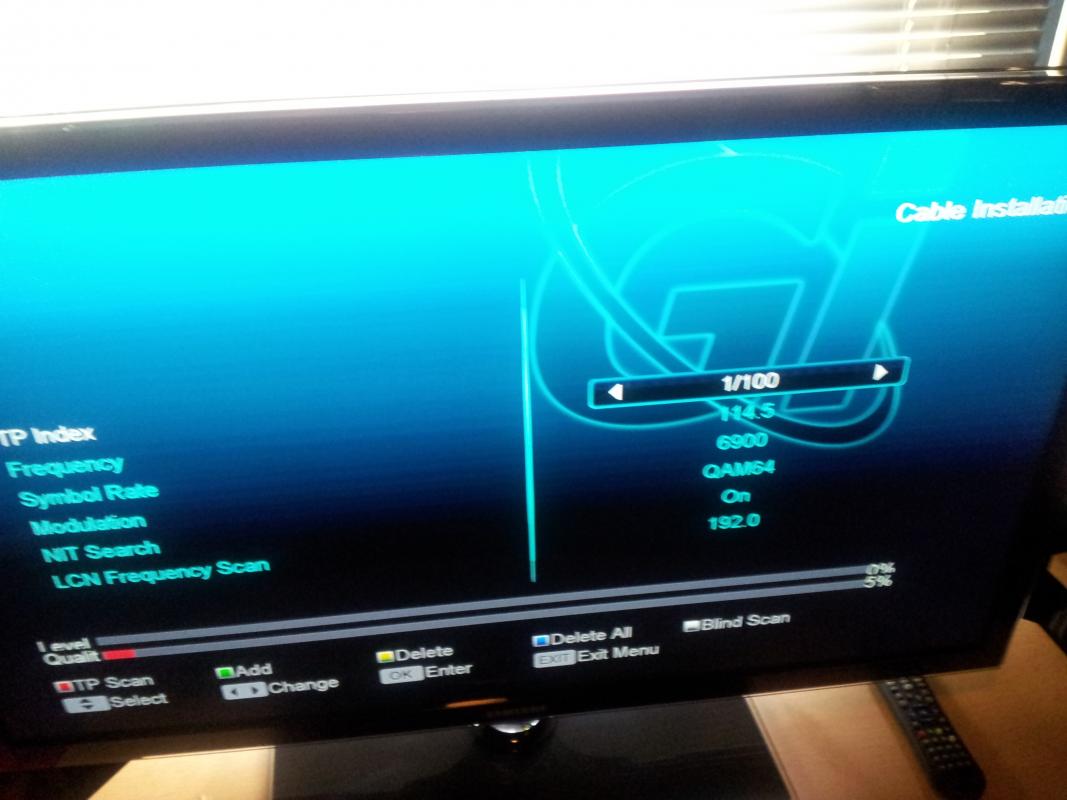

Er staat duidelijk in de door jou bijgevoegde schermafdruk parameters voor kabel TV, evenals rechtsboven de mededeling cable installation.



Kennelijk kan deze ontvanger geleverd worden met kabel of sat tuners.

Met deze ontvanger ga je geen satelliet signaal ontvangen.



In de beschrijving staat verder nog deat deze ontvanger vergelijkbaar is met een Dreambox 800.



Wanneer dit een z.g.n. clone ontvanger is, is discussie hierover op dit forum niet toegestaan.

[marco1980]

ok heb ik een grote fout gemaakt met kopen van dit ding maar bedankt voor de info
