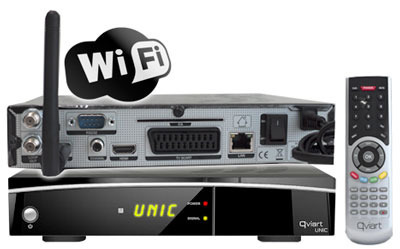

QVIART UNIC 1080p

[Crazy Sat]

Leuke ontvanger , met goede blindscanfunctie en ontvangst in 16APSK !



General Features

General

• 2x DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264).
• SCPC & MCPC receivable from Ku and C band satellites.
• Universal, Single, Single S & C Band Wideband LNB.
• Compatible Code Rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,7/8, 8/9 and 9/10.
• DiSEqC 1.0/1.1/1.2/1.3(USALS).
• Unicable Surpported.
• Multi satel
• Blind search supported.
• lite search, network search, PID search, manual search and Multi-TP Search.
• Fast Scan on Astra(19.2), Polsat, TNK.
• Auto DiSEqC Search.
• PAL/NTSC.
• Variable aspect ratio(4:3,16:9)with PAN&SCAN vector or letter BOX option.
• Output Resolution: 480p&480i,576p & 576i, 720p50&60HZ,1080i50&60HZ, 1080P50&60HZ.
• 16 bits on screen display (OSD).
• Storing memory: 100 satellite, 3000 transponders and 6000 channels.
• Support satellite add, delete, move, rename.
• Support transponder add, delete, edit.
• 8 favorite groups, favorite group rename and parental lock supported.
• Support programme lock, delete, move(group move),rename, swap.
• Support multi-language menu(English, Franch, Russia, Greek, Italian, Arabic, Farsi, Ukrain, Swedish, Spanish, Turkish, German etc).
• Support list of programmes, have sort function: FTA>CAS, transponder, alphabet, favor.
• support multi epg language.
• Easy functions such as Group Move/Recall History.
• Multi-language audio.
• Multi-language DVB Subtitle output.
• 7 days Electronic Program Guide (EPG).
• Teletext output through VBI and OSD.
• Software(data, app, channels) upgrade through USB or Ethernet.
• 2 * USB 2.0 Interface.
• S/PDIF Interface for digital bit stream out (AC-3 or DTS).
• 10/100 MBit compatible Ethernet Interface.
• 1 * CA.

Timer

• Support setting timer by manual or auto, you can add up more than 20 timer events.
• Support watch/record timer event.
• Support customized sleep time.

Etehernet

• FTP Download s/w, channel data, music, picture, media files etc to memroy for upgrade or to USB.
• URL Play function [Only http].
• Weather Forecast.
• RSS.
• Currency converter.
• Stock.
• Youtube.
• Groove Shark.
• Google Map.
• Prayer Times.

USB (FAT, FAT32 and NTFS)

• Delete, create folders, Format and set recording path.
• Upload and download channel list, system data, software.
• Support picture files: bmp, jpg.
• Support music files: mp3, wav.
• Support media files: avi, mkv, dat, ts, vob, mp4, 3gp, mpg, flv.
• Support USB->WIFI(Only Ralink 5370).
• Support USB->3G Card Reader.

USB PVR

• Watching one channel (FTA/Scramble) and Recording another channel (Scramble/FTA) in the same TP. During recording, can switch the channel in the same TP.
• Timeshift when watch or record.
• Support FAT & FAT32, NTFS format.



Chipset Specificatións

General Features

• • Targeted for high definition set-top box solutions.
  • DVB_S2 SOC.
  • 3.3V, 1.8V /1.5V and 1.0V power supply.
  • Power down control.
  • Power save mode for every module.

CPU Related Features

• Dual High Performance 32-bit CPU Architecture. Each core is about 600MHz.

Memory and Bus Interfaces

• 16-bit DDR2/DDR3 DRAM interface.
• Dram frequency up to 1108Mhz.
• Maximum DRAM size of the system provided: 256 Mbytes.
• Maximum S-FLASH sizes supported: 128M bits.

Video Decoder

• ISO/IEC 11172-2 MPEG1.
• ISO/IEC 13818-2 MPEG2 MP@HL.
• ISO/IEC 14496 MPEG4 compliant Support SP@L3 to ASP@L5.
• H.263 (short Header).
• DivX3.11/DivX4/DivX5/DivX6(Optional).
• Xvid.
• ISO/IEC 14496-10 AVC high profile@level 4.1 main profile@level 4.1.
• RealVideo 8/9/10(Optional).
• JPEG base-line.
• Supports out-loop de-blocking for MPEG1/2/4.
• Supports Dview function.
• Supports de-interlace flag generation.
• Supports 3:2 pull down detection.

Display Engine

• Up to 2 video planes and 2 graphic planes (BG + Main video + Auxiliary video + Graphic 1 + Graphic 2).
• High quality scaling for both HD and SD outputs.
• Built-in video enhancements.
• High quality motion adaptive and EPEC (edge preserve and edge compensation) de-interlace.
• High efficient solution for dual output applications.
• Up to 32bit aRGB true color and CLUT graphic planes input.
• High quality scaling with EP(edge preserve) for both graphic planes.
• Advanced algorithms of anti-flicker for both graphic planes.

Graphic Engine

• Command DMA to speed up graphic operations.
• Multiform Source Format for up to 32bit true color and CLUT.
• Multiform Destination Format for up to 32bit true color and CLUT.
• Supported operations.

  Color expansion, correction and color space conversion.
  Draw horizontal line, draw rectangular window with or without color filling.
  Bitblt operation.
  BOP (bit operation).
  Alpha blending and dithering.
  Resize.
  RLE8/RLE16/RLE24/RLE32 decoder.
  Flexible mask layer to support arbitrary application.

Audio Decoder

• Volume(Target volume can be set by 8 bits [7:0]).
• Fading(Increase/Decrease speed can be set by Fade speed) (how many samples inc/decrease at one time).
• SCR counter(Two SCR counters, driven by 27MHz clock).
• PTS check(there is a threshold for PTS check, if(SCR>=(PTS-THR)), music plays; else music pauses).

DVBS2

• Integrates dual 8-bit ADC supporting differential and single-end modes.
• Supports DVB-S QPSK.
• Supports DVB-S2 QPSK/8PSK/16APSK/32APSK.
• Supports DVB-S2 pilot signal.
• Integrates LDPC and BCH decoders.
• Supports DVB-S2 QPSK FEC code rates 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10.
• Supports DVB-S2 8PSK FEC code rates 3/5, 2/3, 3/4, 5/6, 8/9, 9/10.
• Supports DVB-S2 16APSK FEC code rates 2/3, 3/4, 4/5, 5/6, 8/9, 9/10.
• Supports DVB-S2 32APSK FEC code rates 3/4, 4/5, 5/6, 8/9, 9/10.
• Supports DVB-S QPSK FEC code rates 1/2, 2/3, 3/4, 5/6, 7/8.
• Supports DiSEqC 2.0.

Te koop (o.a.) bij een Belgische satelliet (on-line) winkel.  Richtprijs : 130 euro



Voor meer info , testen , enz...   gewoon even "google" gebruiken.

18 mei 2015 aangepast door Crazy Sat
