CD geen update in Oscam met Dreambox en Fritzbox als server


Aanbevolen berichten

Geplaatst: (aangepast)

Hoihoi,

Ik lees all jaren jullie forum, en ook andere, en vindt altijd een oplossing aan mijn problemen met Oscam. Die duiken ook niet vaak op, als het eenmaal goed werkt kom ik er niet meer aan. Maar soms gaat er iets mis, zoals nu.



Setup is als volgt:



Fritzbox 7590 met Oscam 11576 (HD+, 2xSRGv6 en CD in twee Argolis triple)

Twee Dreamboxen met origineel image



Fritzbox server instellingen



oscam.version

Spoiler

Unix starttime: 1617460853
Starttime:      03.04.2021 16:40:53
Version:        oscam-1.20_svn-r11576
Compiler:       mips-linux-uclibc-libusb
Box type:       generic (generic)
PID:            4676
TempDir:        /tmp/.oscam
GBox tmp_dir:   not defined using: /tmp/.oscam
ConfigDir:      /var/media/ftp/addon/oscam/
WebifPort:      83

Web interface support:                   yes
LiveLog support:                         yes
jQuery support intern:                   yes
Touch interface support:                 no
SSL support:                             no
DVB API support:                         yes
DVB API with AZBOX support:              no
DVB API with MCA support:                no
DVB API with COOLAPI support:            no
DVB API with COOLAPI2 support:           no
DVB API with STAPI support:              no
DVB API with STAPI5 support:             no
DVB API with NEUTRINO support:           no
DVB API read-sdt charsets:               yes
Irdeto guessing:                         yes
Anti-cascading support:                  yes
Debug mode:                              yes
Monitor:                                 yes
Loadbalancing support:                   yes
Cache exchange support:                  yes
CW Cycle Check support:                  yes
LCD support:                             no
LED support:                             no
Clockfix with realtime clock:            no
IPv6 support:                            no

camd 3.3x:                               yes
camd 3.5 UDP:                            yes
camd 3.5 TCP:                            yes
newcamd:                                 yes
CCcam:                                   yes
CCcam share:                             yes
gbox:                                    yes
radegast:                                yes
scam:                                    yes
serial:                                  yes
constant CW:                             yes
Pandora:                                 yes
ghttp:                                   yes

Reader support:                          yes

Nagra:                                   yes
Nagra Merlin:                            yes
Irdeto:                                  yes
Conax:                                   yes
Cryptoworks:                             yes
Seca:                                    yes
Viaccess:                                yes
NDS Videoguard:                          yes
DRE Crypt:                               yes
TONGFANG:                                yes
Bulcrypt:                                yes
Griffin:                                 yes
DGCrypt:                                 yes

cardreader_phoenix:                      yes
cardreader_drecas:                       yes
cardreader_internal_azbox:               no
cardreader_internal_coolapi:             no
cardreader_internal_coolapi2:            no
cardreader_internal_sci:                 yes
cardreader_sc8in1:                       yes
cardreader_mp35:                         yes
cardreader_smargo:                       yes
cardreader_pcsc:                         no
cardreader_smartreader:                  yes
cardreader_db2com:                       yes
cardreader_stapi:                        no
cardreader_stapi5:                       no
cardreader_stinger:                      yes



oscam.conf

Spoiler

#Freetzteam
#http://freetz.digital-eliteboard.com/
# inkl. Blue_Shadow_V.2.css


[global]
logfile                       = /var/media/ftp/addon/oscam/oscam.log
disablelog                    = 0
disableuserfile               = 0
usrfileflag                   = 0
cwlogdir                      = 0
emmlogdir                     =
clienttimeout                 = 5000
#failbantime                   =  5
#Failbancount                  = 3
fallbacktimeout               = 2000
clientmaxidle                 = 120
cachedelay                    = 120
bindwait                      = 120
netprio                       = 0
clientdyndns                  = 0
resolvedelay                  = 30
unlockparental                = 0
nice                          = -1
serialreadertimeout           = 1500
maxlogsize                    = 100
waitforcards                  = 1
preferlocalcards              = 1
saveinithistory               = 1
readerrestartseconds          = 5
readerautoloadbalance         = 0
readerautoloadbalance_save    = 0

[cs357x]
port                          = 27551

[webif]
httpport                      = 83
httpuser                      = oscam
httppwd                       = oscam
httpcss                       = /var/media/ftp/addon/oscam/Blue_Shadow_V.2.css
httprefresh                   = 10
httpallowed                   = 127.0.0.1,192.168.0.0-192.168.255.255
httphideidleclients           = 1
httpreadonly                  = 0



oscam.user

Spoiler

[account]
user                          = DB2
pwd                           = xxx
au                            = 1
group                         = 1,2,3,4,5,6
emmreassembly                 = 1


[account]
user                          = DB1

pwd                           = xxx
au                            = 1
group                         = 2,3,4
emmreassembly                 = 1




oscam.server

Spoiler

# oscam.server generated automatically by Streamboard OSCAM 1.20_svn SVN r11576
# Read more: http://www.streamboard.tv/svn/oscam/trunk/Distribution/doc/txt/oscam.server.txt

[reader]
label                         = HD+
protocol                      = smargo
device                        = /dev/ttyUSB0
smargopatch                   = 1
caid                          = 1830
boxkey                        = A7...7C
rsakey                        = BF...D5
detect                        = cd
mhz                           = 534
cardmhz                       = 369
ident                         = 1830:003411,000000,008011
group                         = 2
emmcache                      = 1,3,2,0

[reader]
label                         = SRGv6_2
protocol                      = smargo
device                        = /dev/ttyUSB3
detect                        = cd
mhz                           = 534
cardmhz                       = 369
group                         = 6

[reader]
label                         = SRGv6_1
protocol                      = smargo
device                        = /dev/ttyUSB4
detect                        = cd
mhz                           = 534
cardmhz                       = 369
group                         = 4

[reader]
label                         = Onder_CDNL
protocol                      = smargo
device                        = /dev/ttyUSB1
caid                          = 0100
detect                        = cd
#mhz                           = 534
#cardmhz                       = 369
ident                         = 0100:00006A
group                         = 3
#emmcache                      = 1,1,15,0
auprovid                      = 00006A
#ratelimitecm                  = 4
#ratelimittime                 = 0
#srvidholdtime                 = 0





Dreambox instellingen:



oscam.version

Spoiler

Unix starttime: 1617453292
Starttime:      03.04.2021 14:34:52
Version:        oscam-build-audi06_19-svn1.20-r11425
Compiler:       arm-linux-gnueabihf
Box type:       dm920 (generic)
PID:            296
TempDir:        /tmp/.oscam
ConfigDir:      /var/tuxbox/config/
WebifPort:      83

GBox tmp_dir:   not defined using: /tmp/.oscam
                value read during start up, not refreshed if changed later in webif!

Web interface support:                   yes
LiveLog support:                         yes
jQuery support intern:                   yes
Touch interface support:                 yes
SSL support:                             no
DVB API support:                         yes
DVB API with AZBOX support:              no
DVB API with MCA support:                no
DVB API with COOLAPI support:            no
DVB API with COOLAPI2 support:           no
DVB API with STAPI support:              no
DVB API with STAPI5 support:             no
DVB API read-sdt charsets:               yes
Irdeto guessing:                         yes
Anti-cascading support:                  yes
Debug mode:                              yes
Monitor:                                 yes
Loadbalancing support:                   yes
Cache exchange support:                  yes
CW Cycle Check support:                  yes
LCD support:                             no
LED support:                             no
Emulator support:                        yes
Clockfix with realtime clock:            yes
IPv6 support:                            no

camd 3.3x:                               no
camd 3.5 UDP:                            yes
camd 3.5 TCP:                            yes
newcamd:                                 yes
CCcam:                                   yes
CCcam share:                             yes
gbox:                                    yes
radegast:                                yes
scam:                                    yes
serial:                                  yes
constant CW:                             yes
Pandora:                                 yes
ghttp:                                   yes

Reader support:                          yes

Nagra:                                   yes
Irdeto:                                  yes
Conax:                                   yes
Cryptoworks:                             yes
Seca:                                    yes
Viaccess:                                yes
NDS Videoguard:                          yes
DRE Crypt:                               yes
TONGFANG:                                yes
Bulcrypt:                                yes
Griffin:                                 yes
DGCrypt:                                 yes

cardreader_phoenix:                      yes
cardreader_drecas:                       yes
cardreader_internal_azbox:               no
cardreader_internal_coolapi:             no
cardreader_internal_coolapi2:            no
cardreader_internal_sci:                 yes
cardreader_sc8in1:                       yes
cardreader_mp35:                         yes
cardreader_smargo:                       yes
cardreader_pcsc:                         no
cardreader_smartreader:                  no
cardreader_db2com:                       yes
cardreader_stapi:                        no
cardreader_stapi5:                       no
cardreader_stinger:                      yes



oscam.conf

Spoiler

# oscam.conf generated automatically by Streamboard OSCAM 1.20-unstable_svn SVN r10947
# Read more: http://www.streamboard.tv/svn/oscam/trunk/Distribution/doc/txt/oscam.conf.txt

[global]
logfile                       = /dev/tty
preferlocalcards              = 2

#[cache]

#[cs357x]
#port                          = 27550

[dvbapi]
enabled                       = 1
au                            = 1
user                          = DB2
boxtype                       = dreambox
read_sdt                      = 1

[webif]
httpport                      = 83
httpallowed                   = 127.0.0.1,192.168.0.0-192.168.255.255



oscam.user

Spoiler

# oscam.user generated automatically by Streamboard OSCAM 1.20-unstable_svn SVN r11281
# Read more: http://www.streamboard.tv/svn/oscam/trunk/Distribution/doc/txt/oscam.user.txt


[account]
user = DB2
au = 1
group = 1,2,3,4,5,6



oscam.server

Spoiler

# oscam.server generated automatically by Streamboard OSCAM build-audi06_19-svn1.20 SVN r11425
# Read more: http://www.streamboard.tv/svn/oscam/trunk/Distribution/doc/txt/oscam.server.txt

[reader]
label                         = Freetz
protocol                      = cs357x
device                        = 192.168.1.1,27551
user                          = DB2
password                      = pass2
group                         = 1,2,3,4,5,6
disablecrccws                 = 1

[reader]
label                         = HD+
description                   = HD+
enable                        = 0
protocol                      = cs357x
device                        = 192.168.1.1,27551
user                          = DB2
password                      = pass2
caid                          = 1830
ecmwhitelist                  = 92
ident                         = 1830:000000,003411,008011
group                         = 2
emmcache                      = 1,3,2,0
blockemm-unknown              = 1
auprovid                      = 008011

[reader]
label                         = emulator
protocol                      = emu
device                        = emulator
caid                          = 090F,0500,1801,0604,2600,FFFF,0E00,4AE1,1010
detect                        = cd
ident                         = 090F:000000;0500:000000,023800,021110,007400,007800;1801:000000,007301,001101,002111;0604:000000;2600:000000;FFFF:000000;0E00:000000;4AE1:000011,000014,0000FE;1010:000000
group                         = 1
emmcache                      = 2,1,2,1
emu_auproviders               = 0604:010200;0E00:000000;4AE1:000011,000014,0000FE;1010:000000

[reader]
label                         = Onder_CDNL
enable                        = 0
protocol                      = internal
device                        = /dev/sci0
caid                          = 0100
detect                        = cd
mhz                           = 500
cardmhz                       = 500
group                         = 3
emmcache                      = 1,1,15,0
lb_weight                     = 1000
ratelimitecm                  = 4
ratelimittime                 = 0
srvidholdtime                 = 0

[reader]
label                         = Onder_CDNL_Simple
enable                        = 0
protocol                      = internal
device                        = /dev/sci0
detect                        = cd
mhz                           = 500
group                         = 3
emmcache                      = 1,1,15,0





Op dit moment werkt alleen de CD kaart niet, alle andere doen het goed. Ik heb geprobeerd een heraktievering te doen maar dat helpt ook niet verder.



Het opsdtaarten ziet er zo uit



Spoiler
  • 2021/04/03 20:25:11 0DA24194 h (webif) reader Onder_CDNL enabled by WebIf
  • 2021/04/03 20:25:11 5D95B8D8 r (reader) Onder_CDNL [seca] Reader initialized (device=/dev/ttyUSB1, detect=cd, mhz= AUTO, cardmhz=369)
  • 2021/04/03 20:25:11 5D95B8D8 r (reader) Onder_CDNL [seca] card detected
  • 2021/04/03 20:25:14 5D95B8D8 r (reader) Onder_CDNL [smargo] ATR: 3B F7 11 00 01 40 96 70 70 0A 0E 6C B6 D6
  • 2021/04/03 20:25:15 5D95B8D8 r (reader) Onder_CDNL [smargo] detect seca/nagra tunneled card
  • 2021/04/03 20:25:17 5D95B8D8 r (reader) Onder_CDNL [smargo] Nagra layer found
  • 2021/04/03 20:25:17 5D95B8D8 r (reader) Onder_CDNL [smargo] Rom revision: DNASP400 RevI4G
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [smargo] type: SECA, caid: 0100, serial: #########, card: Mediaguard v10.0
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [smargo] Maturity level [0]= older than 0 years
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [smargo] found card system seca
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] THIS WAS A SUCCESSFUL START ATTEMPT No 1 out of max allotted of 1
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] Request provider 1
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] provider 1: 0000, valid: 0, name: MANAGEMENT, expiry date: 2021/03/21
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] PBM for provider 1: 799008001c000
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] Request provider 2
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] provider 2: 006A, valid: 0, name: CANAL DIGITAAL, expiry date: 2021/03/24
  • 2021/04/03 20:25:19 5D95B8D8 r (reader) Onder_CDNL [seca] PBM for provider 2: c000000000000000



Is dus al sinds "expiry date: 2021/03/24" niet meer geupdate woorden. Volgens mij heb ik een "simpel" (zoals ik) reader geprobeerd en toen heeft het kaartje zijn rechte verloren. De SRG kaartjes hebben een super simpel reader:



Spoiler

reader]
label                         = SRGv6_2
protocol                      = smargo
device                        = /dev/ttyUSB3
detect                        = cd
mhz                           = 534
cardmhz                       = 369
group                         = 6



mhz en cardmhz heb ik er niet ingevoegd, kwamen vanzelf. Ik zou het liefst een minimum erin hebben, om tenminste te probeeren te begrijpen wat erin zit...



Kaartje was een paar maanden in de Dreambox en daar ging het goed, tot mijn super minimale reader idee. Kaartje was daarvor ook jaaren in een oudere fritzbox maar die het de geest opgegeven.



Ziet een van jullie wat er hier verkeerd gelopen is?

aangepast door elismax

Geplaatst:

Simpel....Je kaart is door Canal Digitaal afgesloten! PBM=C00000000. Doet alleen nog vrije kanalen...

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Geplaatst: (aangepast)

twee minuten in de dreambox en het doet het weer maar mijn vraag blijft dus toch waarom het kaartje niet in de fritzbox werkt



Spoiler
  • 2021/04/03 21:34:35 4AC7D331 h (reader) Onder_CDNL [seca] Restarting reader
  • 2021/04/03 21:34:35 4AC7D331 h (reader) Onder_CDNL [seca] creating thread for device /dev/sci0
  • 2021/04/03 21:34:35 1D3A51BA r (reader) Onder_CDNL [seca] Reader initialized (device=/dev/sci0, detect=cd, mhz=500, cardmhz=500)
  • 2021/04/03 21:34:35 1D3A51BA r (reader) Onder_CDNL [seca] Reader sci internal, detected box type: dm920
  • 2021/04/03 21:34:36 1D3A51BA r (reader) Onder_CDNL [seca] card detected
  • 2021/04/03 21:34:37 1D3A51BA r (reader) Onder_CDNL [internal] ATR: 3B F7 11 00 01 40 96 70 70 0A 0E 6C B6 D6
  • 2021/04/03 21:34:37 1D3A51BA r (reader) Onder_CDNL [internal] Init card protocol T0, FI=1, F=372, D=1, N=1
  • 2021/04/03 21:34:37 1D3A51BA r (reader) Onder_CDNL [internal] Calculated work ETU is 74.40 us reader mhz = 500
  • 2021/04/03 21:34:38 1D3A51BA r (reader) Onder_CDNL [internal] ATR Fsmax is 5 MHz, clocking card to 5.00 (specified in reader->mhz)
  • 2021/04/03 21:34:39 1D3A51BA r (reader) Onder_CDNL [internal] detect seca/nagra tunneled card
  • 2021/04/03 21:34:41 1D3A51BA r (reader) Onder_CDNL [internal] Nagra layer found
  • 2021/04/03 21:34:41 1D3A51BA r (reader) Onder_CDNL [internal] Rom revision: DNASP400 RevI4G
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [internal] type: SECA, caid: 0100, serial: #########, card: Mediaguard v10.0
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [internal] Maturity level [0]= older than 0 years
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [internal] found card system seca
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] THIS WAS A SUCCESSFUL START ATTEMPT No 1 out of max alloted of 1
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] Request provider 1
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] provider 1: 0000, valid: 1, name: MANAGEMENT, expiry date: 2021/05/30
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] SA: ########
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] PBM for provider 1: 799008001c000
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] Request provider 2
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] provider 2: 006A, valid: 1, name: CANAL DIGITAAL, expiry date: 2021/06/02
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] SA: ########
  • 2021/04/03 21:34:43 1D3A51BA r (reader) Onder_CDNL [seca] PBM for provider 2: c000000000000000

als het kaartje nu in de fritzbox komt krijg ik een "(Invalid ecm type for card)" melding in de log

aangepast door elismax
Geplaatst:

Dat zou heel vreemd zijn... De PBM C00000000 wil zeggen alleen de vrije zenders... Wat geeft de PBM aan nadat deze in de Dreambox wel beeld geeft?

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Geplaatst:

Nog steeds hetzelfde

Spoiler
  • 2021/04/03 21:56:35 1D3A51BA r (reader) Onder_CDNL [seca] Deactivating card
  • 2021/04/03 21:56:55 4AC7D331 h (reader) Onder_CDNL [seca] Restarting reader
  • 2021/04/03 21:56:55 4AC7D331 h (reader) Onder_CDNL [seca] creating thread for device /dev/sci0
  • 2021/04/03 21:56:55 7EE4A2B2 r (reader) Onder_CDNL [seca] Reader initialized (device=/dev/sci0, detect=cd, mhz=500, cardmhz=500)
  • 2021/04/03 21:56:55 7EE4A2B2 r (reader) Onder_CDNL [seca] Reader sci internal, detected box type: dm920
  • 2021/04/03 21:56:55 7EE4A2B2 r (reader) Onder_CDNL [seca] card detected
  • 2021/04/03 21:56:56 7EE4A2B2 r (reader) Onder_CDNL [internal] ATR: 3B F7 11 00 01 40 96 70 70 0A 0E 6C B6 D6
  • 2021/04/03 21:56:56 7EE4A2B2 r (reader) Onder_CDNL [internal] Init card protocol T0, FI=1, F=372, D=1, N=1
  • 2021/04/03 21:56:56 7EE4A2B2 r (reader) Onder_CDNL [internal] Calculated work ETU is 74.40 us reader mhz = 500
  • 2021/04/03 21:56:57 7EE4A2B2 r (reader) Onder_CDNL [internal] ATR Fsmax is 5 MHz, clocking card to 5.00 (specified in reader->mhz)
  • 2021/04/03 21:56:58 7EE4A2B2 r (reader) Onder_CDNL [internal] detect seca/nagra tunneled card
  • 2021/04/03 21:57:00 7EE4A2B2 r (reader) Onder_CDNL [internal] Nagra layer found
  • 2021/04/03 21:57:00 7EE4A2B2 r (reader) Onder_CDNL [internal] Rom revision: DNASP400 RevI4G
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [internal] type: SECA, caid: 0100, serial: #########, card: Mediaguard v10.0
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [internal] Maturity level [0]= older than 0 years
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [internal] found card system seca
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] THIS WAS A SUCCESSFUL START ATTEMPT No 1 out of max alloted of 1
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] Request provider 1
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] provider 1: 0000, valid: 1, name: MANAGEMENT, expiry date: 2021/05/30
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] SA: ########
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] PBM for provider 1: 799008001c000
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] Request provider 2
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] provider 2: 006A, valid: 1, name: CANAL DIGITAAL, expiry date: 2021/06/02
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] SA: ########
  • 2021/04/03 21:57:02 7EE4A2B2 r (reader) Onder_CDNL [seca] PBM for provider 2: c000000000000000



Geplaatst:

heractivatie doen op de CD site

SCHOTEL: 1,2 Mtr 50E-55W / 60cm Astra 19/23 / Airspy R2 SDR 24-1800 Mhz
RECEIVERS: Dreambox 920 UHD/DM8000/800SE / VU+ Ultimo 4K Sat & Kabel & T2 / Rpi2 ADS-B FlightFeeder

IPTV:  KPN Glas (AoN) 1 Gbit & IPTV KPN plus+ TV box  / Android 4K IPTV box / Kodi & Plex / 100+ TB Storage

Geplaatst: (aangepast)

Maar het doet het in de Dreambox. Mijn probleem is dat dit kaartje in de Fritzbox moet zo dat ik niet heen en weer moet met mijn kaartje en twee Dreamboxen.

Het heraktieveren lukt in de dreambox maar niet in de fritzbox die ga ik nu DB en FB noemen, het is al moeilijk genoeg met het Nederlands.

aangepast door elismax
Geplaatst:

Met die PBM zou die geen beeld mogen geven! Zeker weten dat er geen emu staat te draaien?



Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Geplaatst:

Ja, dit hier stond aan

Spoiler

[reader]
label                         = emulator
protocol                      = emu
device                        = emulator
caid                          = 090F,0500,1801,0604,2600,FFFF,0E00,4AE1,1010
detect                        = cd
ident                         = 090F:000000;0500:000000,023800,021110,007400,007800;1801:000000,007301,001101,002111;0604:000000;2600:000000;FFFF:000000;0E00:000000;4AE1:000011,000014,0000FE;1010:000000
group                         = 1
emmcache                      = 2,1,2,1
emu_auproviders               = 0604:010200;0E00:000000;4AE1:000011,000014,0000FE;1010:000000

maar ik heb geen idee wat dat is en ik heb het nu uitgeschakeld en het doet het nog steeds.

Geplaatst:

Geeft hij nu wél beeld op CDS dan?

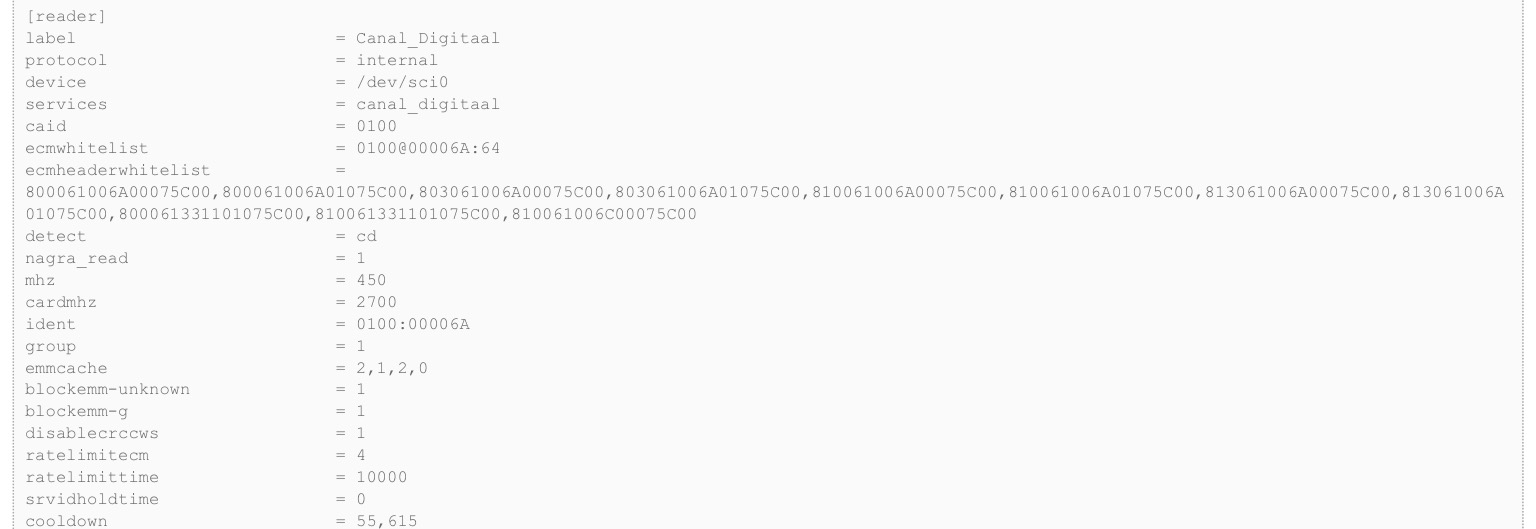

Mijn instelling voor mijn CDS kaart




Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Geplaatst: (aangepast)

Ja, ik heb beeld op alle zenders van het riant abo en mijn instellingen in de DB zijn

Spoiler

[reader]
label                         = Onder_CDNL
enable                        = 0
protocol                      = internal
device                        = /dev/sci0
caid                          = 0100
detect                        = cd
mhz                           = 500
cardmhz                       = 500
group                         = 3
emmcache                      = 1,1,15,0
lb_weight                     = 1000
ratelimitecm                  = 4
ratelimittime                 = 0
srvidholdtime                 = 0

maar ok al neem ik precies die instellingen doet het kaartje het niet in de FB



Ik zal nu jouw instellingen in mijn FB probeeren. Bedankt alvast voor het posten van die instellingen. Een tekst versie van die instellingen heb jij niet misschien?

aangepast door elismax
Geplaatst:

Hoe kan die reader nu werken als er 'enable=0' staat. Hier stinkt iets....

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Geplaatst: (aangepast)

ik heb het uit de eerste post genomen. het is duijdelijk op enable. Hier:

Spoiler

# oscam.server generated automatically by Streamboard OSCAM build-audi06_19-svn1.20 SVN r11425
# Read more: http://www.streamboard.tv/svn/oscam/trunk/Distribution/doc/txt/oscam.server.txt

[reader]
label                         = Freetz
protocol                      = cs357x
device                        = 192.168.1.1,27551
user                          = DB2
password                      = xxx
group                         = 1,2,3,4,5,6
disablecrccws                 = 1



[reader]
label                         = emulator
enable                        = 0
protocol                      = emu
device                        = emulator
caid                          = 090F,0500,1801,0604,2600,FFFF,0E00,4AE1,1010
detect                        = cd
ident                         = 090F:000000;0500:000000,023800,021110,007400,007800;1801:000000,007301,001101,002111;0604:000000;2600:000000;FFFF:000000;0E00:000000;4AE1:000011,000014,0000FE;1010:000000
group                         = 1
emmcache                      = 2,1,2,1
emu_auproviders               = 0604:010200;0E00:000000;4AE1:000011,000014,0000FE;1010:000000

[reader]
label                         = Onder_CDNL
protocol                      = internal
device                        = /dev/sci0
caid                          = 0100
detect                        = cd
mhz                           = 500
cardmhz                       = 500
group                         = 3
emmcache                      = 1,1,15,0
lb_weight                     = 1000
ratelimitecm                  = 4
ratelimittime                 = 0
srvidholdtime                 = 0

[reader]
label                         = Onder_CDNL_Simple
enable                        = 0
protocol                      = internal
device                        = /dev/sci0
detect                        = cd
mhz                           = 500
group                         = 3
emmcache                      = 1,1,15,0



Zo ziet de log eruit

Spoiler
  • 021/04/03 22:15:20 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:15:28 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:15:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:8FB0C2573835C060E6FDFF3D37F18D57): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:15:29 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:15:38 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:15:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:D0E58A8990035485E7771F18E7F59BA3): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:15:40 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:15:44 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:15:44 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:15:48 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:15:48 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:15:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:D691920851DD030A9F6D9EF1C3FA003F): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:15:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:15:58 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:15:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:89928F377C575F6FDFC58D3B2E14E8D6): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:16:00 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:08 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:16:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:8E91ABE3C517DC512B01C74AE735F6FE): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:16:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:14 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:16:14 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:16 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:16:16 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:18 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:16:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:93D6BDCB890D7A6E5BBA951B5D37931B): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:16:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:28 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:16:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:A4FB9DA1A6F92F31EC8027638A493084): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:16:28 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:38 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:16:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:BB4CBB58E5101A150AA499736E725557): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:16:41 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:45 7EE4A2B2 r (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:16:45 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (225 ms)
  • 2021/04/03 22:16:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:7DF5FAFE2AC72B96D2528A4926A64CCF): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:16:50 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:53 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (226 ms)
  • 2021/04/03 22:16:54 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:16:57 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (225 ms)
  • 2021/04/03 22:16:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:D63E0E691B0D1B2EB75E0A397103E8F2): found (263 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:17:00 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:05 7EE4A2B2 r (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:17:05 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (225 ms)
  • 2021/04/03 22:17:06 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:1A0F198EAC34AB70782EA89E06764401): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:17:09 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (224 ms)
  • 2021/04/03 22:17:13 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:17 7EE4A2B2 r (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:17:17 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (224 ms)
  • 2021/04/03 22:17:17 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:5EDCE67D244B9180D47A50CCAD764A7E): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:17:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:28 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:17:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:2AB1FC722E8370EBCDD372CC730A0796): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:17:29 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:38 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:17:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:3197E5987287A29AC03439550D3B0300): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:17:41 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:45 7EE4A2B2 r (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:17:45 7EE4A2B2 r (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: written (225 ms)
  • 2021/04/03 22:17:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:9AF6338C8F20B9A62913945FD7518BE5): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:17:50 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:17:58 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:17:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:18C37361F41CFE4F415137141EE54F05): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:18:01 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:08 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:18:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:A6F9FDBBE85EE23845F980BB4AFBF46E): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:18:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:18 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:18:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:72104AACA6B36D8A04AFFB6F6940249D): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:18:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:28 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:18:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:DCEE168C3847D28098B5F5798E4E5849): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:18:29 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:38 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:18:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:12F4CB847E44F89E1CAD1C011DA271C8): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:18:40 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:44 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:18:44 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:44 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:45 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:BC1A8AC8D9A321F5E06E28082B14DAB8): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:18:50 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:18:58 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:18:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:21ADA8350CF51E4A87AC8F58CE4F9D47): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:19:01 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:08 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:19:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:E608194A65DCDEB5A0916C01F50C1C36): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:19:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:18 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:19:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:98411A10BE198100AD7730CC1553EA87): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:19:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:28 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:19:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:83F923F746DA703FFE9C002674FB193E): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:19:30 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:36 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:19:36 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:37 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:37 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:38 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:3FF9270C022BBDCB0D3DF34DB3824175): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:19:42 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:48 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:19:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:BFF016EAE6AE3B6A78804687CB1B9834): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:19:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:19:58 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:19:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:7EE74BBE2D101FCD3A925221012C0D0F): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:20:01 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:20:08 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:20:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:77EAB9049E51DED958B3298D9784FB5F): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:20:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:20:18 282D444A c (-) -- Skipped 5 duplicated log lines --
  • 2021/04/03 22:20:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:0D949E6947968CE3D52B147AFD459DC7): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:20:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:20:28 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:20:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:C6369ED1BAE9AC438AA326E321B0671B): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:20:30 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:20:38 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:20:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:5E144A9D35E1E34256207376F424211E): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:20:41 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:20:48 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:20:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:1AB32139479D7262897F4D4B060DB53B): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:20:53 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:20:58 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:20:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:7C457DE291AC9473379BB1F9390725D3): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:21:01 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:08 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:21:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:C0036F37CC41B2E7F10C8F2F4C496E79): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:21:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:18 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:21:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:5CFE241BAC6C0D4261035CC44169D58C): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:21:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:28 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:21:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:709670FDF9EF0C2CD87BE3340C47801C): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:21:29 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:38 282D444A c (-) -- Skipped 5 duplicated log lines --
  • 2021/04/03 22:21:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:B52FA6EFF332CADC06D095FB403D0F94): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:21:41 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:44 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:21:44 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:45 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:21:45 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:48 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:21:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:7A22B436DE66E1A3558A1C3B87134991): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:21:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:21:58 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:21:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:5CC2E08A72157DF325F96A95D721096E): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:22:01 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:08 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:22:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:5E2E8101F60CD259DD094EF704FDD27E): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:22:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:18 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:22:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:A8B1F9BD4D762FE6F73B849D8437C523): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:22:20 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:28 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:22:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:1453313D6A76C77460A2DF6E50DC19F2): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:22:33 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:38 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:22:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:451E76668E6080BF7D6C7FD6CA14C90F): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:22:44 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:48 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:22:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:4DCE99A7C12227AC1F9868FA4B2067C5): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:22:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:57 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:22:57 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:58 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:58 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:22:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:4BC09E5A46744C709FE4BB75A1E928CE): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:23:00 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:23:04 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 stop descrambling program number 5230 (NPO3 HD)
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 0 CAID: 0D96 ECM_PID: 06AB PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 1 CAID: 0624 ECM_PID: 06BF PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 2 CAID: 1817 ECM_PID: 070F PROVID: 00006A
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 3 CAID: 1818 ECM_PID: 0773 PROVID: 00006C
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 4 CAID: 1819 ECM_PID: 07D7 PROVID: 00006D
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 5 CAID: 0648 ECM_PID: 0BBF PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 6 CAID: 0D95 ECM_PID: 0BE7 PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 7 CAID: 0650 ECM_PID: 138F PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 8 CAID: 0D98 ECM_PID: 13F3 PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 9 CAID: 0100 ECM_PID: 070F PROVID: 00006A PBM: FFE000000000000 DATE: 3-4-2021
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 10 CAID: 0100 ECM_PID: 0773 PROVID: 00006C PBM: FFE000000000000 DATE: 3-4-2021
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 11 CAID: 0500 ECM_PID: 0903 PROVID: 032920
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 12 CAID: 0500 ECM_PID: 0921 PROVID: 050F00
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 13 CAID: 0500 ECM_PID: 0C4B PROVID: 051900
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 ecmpid 14 CAID: 181D ECM_PID: 100B PROVID: 000000
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 found 15 ECMpids and 2 STREAMpids in caPMT
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 trying to descramble PID 9 CAID 0100 PROVID 00006A ECMPID 070F ANY CHID PMTPID 089F VPID 025F
  • 2021/04/03 22:23:04 282D444A c (dvbapi) Demuxer 0 found 15 ECMpids and 2 STREAMpids in PMT
  • 2021/04/03 22:23:04 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:05D45EB294E432FD45BA504CFF0D6712): found (258 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:23:07 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:DD99E2252AF6DFF734C8F7FFF8386C2B): found (257 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:23:08 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:23:17 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:23:17 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:9EFEA9F54FF0060FF7E3BAE39D71408B): found (257 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:23:21 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:23:27 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:23:27 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:9EBDD2C7F80442585CD3945350FB9ADD): found (257 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:23:32 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:23:37 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:23:37 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:65ED6AB0AD37725E5E4EC09DE3143F10): found (261 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:23:40 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:23:47 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:23:47 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:070CCC66F0305BE5D75F04301C14221F): found (258 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:23:48 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:23:57 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:23:57 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:E355BE3D9B88F0EEE5B5A151447197CD): found (257 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:24:00 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:07 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:24:07 282D444A c (ecm) DB2 (0100@00006A/5C00/100B/64:CD17CD2A88FC676BC7543052F6C79B34): found (257 ms) by Onder_CDNL (L/1/2/2) - Hustler TV
  • 2021/04/03 22:24:08 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:13 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 stop descrambling program number 100B (Hustler TV)
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 ecmpid 0 CAID: 1817 ECM_PID: 070F PROVID: 00006A
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 ecmpid 1 CAID: 1818 ECM_PID: 0723 PROVID: 00006C
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 ecmpid 2 CAID: 1819 ECM_PID: 08DB PROVID: 00006D
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 ecmpid 3 CAID: 0100 ECM_PID: 070F PROVID: 00006A PBM: FFE000000000000 DATE: 3-4-2021
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 ecmpid 4 CAID: 0100 ECM_PID: 0723 PROVID: 00006C PBM: FFE000000000000 DATE: 3-4-2021
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 ecmpid 5 CAID: 0500 ECM_PID: 0C37 PROVID: 051900
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 found 6 ECMpids and 5 STREAMpids in caPMT
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 trying to descramble PID 3 CAID 0100 PROVID 00006A ECMPID 070F ANY CHID PMTPID 0AB4 VPID 0206
  • 2021/04/03 22:24:13 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:CD17CD2A88FC676BC7543052F6C79B34): cache1 (0 ms) by Onder_CDNL - NPO3 HD
  • 2021/04/03 22:24:13 282D444A c (dvbapi) Demuxer 0 found 6 ECMpids and 5 STREAMpids in PMT
  • 2021/04/03 22:24:14 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:B14A0AFCD0A6EDE1C16623F624BF36A9): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:24:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:A43E840B1CF879BEE97C3D3AB65E2D94): found (258 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:24:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:A1D1C4DF4955800057E6A176DC653649): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:24:37 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:38 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:24:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:D1E24ED9E3CBF30CE8C3D78D20D05935): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:24:42 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:44 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:45 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:24:45 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:48 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:24:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:ECBCB32A6011D2C51CE8BF61FF995E67): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:24:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:24:58 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:24:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:6447F242597991C6CB031610C263C6BB): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:01 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:25:08 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:25:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:565B70921D84C4CC5840EFB66ADEEB2F): found (261 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:10 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:25:18 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:25:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:B93F795E3BF3B75EDFB60D7D31364EB9): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:19 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:25:28 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:25:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:9E4DD9D9D45A22216DCEE3053A08619A): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:29 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:25:38 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:25:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:18E4D9E1841AB35D6011C2003123A4E5): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:40 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:25:48 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:25:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:AF88A810C2ADCB346D2B6059276F9870): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:25:58 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:25:58 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:C3BC1C56B5E31863E2B903EC4C054E1F): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:25:59 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:26:08 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:26:08 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:B272A6BDB2073062570314384778A93E): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:26:09 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:26:18 282D444A c (-) -- Skipped 4 duplicated log lines --
  • 2021/04/03 22:26:18 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:43E3183FD232EE369457A24C7575432F): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:26:19 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=shared, len=119 (hex: 0x77), cnt=1: skipped (0 ms)
  • 2021/04/03 22:26:20 282D444A c (-) -- Skipped 1 duplicated log lines --
  • 2021/04/03 22:26:20 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:26:28 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:26:28 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:8FD7F05C4D34896291F284073D1C6521): found (262 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:26:29 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:26:38 282D444A c (-) -- Skipped 2 duplicated log lines --
  • 2021/04/03 22:26:38 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:17432717E46E2297F1A8A11E40FAD0F3): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:26:40 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)
  • 2021/04/03 22:26:48 282D444A c (-) -- Skipped 3 duplicated log lines --
  • 2021/04/03 22:26:48 282D444A c (ecm) DB2 (0100@00006A/5C00/5230/64:3F9CEC184849CAA43225B1B021952247): found (257 ms) by Onder_CDNL (L/1/2/2) - NPO3 HD
  • 2021/04/03 22:26:49 282D444A c (reader) Onder_CDNL [seca] DB2 emmtype=global, len=116 (hex: 0x74), cnt=1: skipped (0 ms)



aangepast door elismax
Geplaatst:

Oké, even overheen gelezen.... En wat geeft de log aan als je OScam op je DB herstart? Welke PBM toont die dan? Zou iets van C080000000 of E800000000 moeten zijn dan..

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Maak een account aan of log in om te reageren

Je moet een lid zijn om een reactie te kunnen achterlaten

Account aanmaken

Registreer voor een nieuwe account in onze community. Het is erg gemakkelijk!

Registreer een nieuwe account

Inloggen

Heb je reeds een account? Log hier in.

Nu inloggen
  • Wie is er online   0 leden

    • Er zijn geen geregistreerde gebruikers deze pagina aan het bekijken
×
×
  • Nieuwe aanmaken...
